Multifunctional Drone Thermal Camera VOx LWIR Camera Core
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512 / 17μm | NETD | ≤40mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Size | 44.5x44.5x50.8 (With 19mm Lens) |
| Weight | 127g±3g (With 19mm Lens) | Frame Rate | 25Hz/30Hz |
| High Light | Multifunctional Drone Thermal Camera,VOx LWIR Camera Core,Drone Thermal Camera LWIR |
||
Product Description

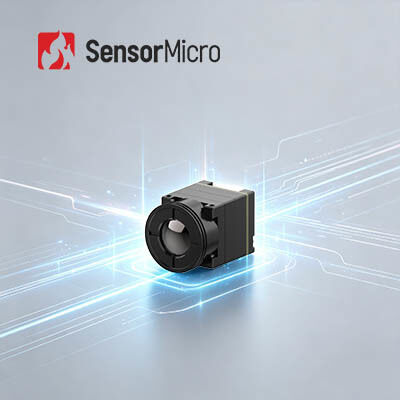

PLUG617R Uncooled Thermal Camera Module
PLUG617R Uncooled LWIR VOx 640x512 / 17μm Drone Thermal Imaging Camera Core for Wide Applications
Product Description
PLUG617R is a radiometrics thermal camera core for applications where it is necessary to determine the actual surface temperature. It integrates uncooled VOx LWIR 640x512 infrared detector and its thermal sensitivity is no more than 40 mK.
They are used mainly in the field of technical diagnostics, predictive maintenance, condition monitoring etc. Except these applications, the PLUG617R is also widely used in the field of unmanned aerial vehicle payloads. Its typical applications are for instance: power line inspection, flat roofs inspection, photovoltaics power plant inspection, building diagnostics, pipeline inspection, and more…
Main Features
- NETD≤40mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability
Product Specifications
| Model | PLUG617R |
| IR Detector Performance | |
| Resolution | 640x512 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | ≤40mk |
| Image Processing | |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | ≤15s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS; Support UVC Video Transmission Protocol |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 (YUV Output) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Typical Power Consumption | ＜2W |
| Temperature Measurement | |
| Operating Temperature Range | -10°C~50°C |
| Temperature Range | -20°C~150°C, 100°C~550°C |
| Temperature Accuracy | Greater of ± 2℃ or 2% (Typical ) |
| SDK | Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature |
| Physical Characteristics | |
| Dimension (mm) | 44.5x44.5x50.8 (With 19mm Lens) |
| Weight | 127g±3g (With 19mm Lens) |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Certificate | RoHS2.0/REACH |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 19mm |
Industrial Applications
The PLUG617R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.
Thermal Module UAV Payloads Solution
FAQs
1. What are the advantages of uncooled infrared detectors?
Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.
2. What are the key considerations on an infrared detector / thermal module for your application?
---The detector resolution
---The pixel size
---The NETD
---The image quality
---The lens options
---The power consumption
---The size and weight
---The mechanical & electrical interface
---The budget
