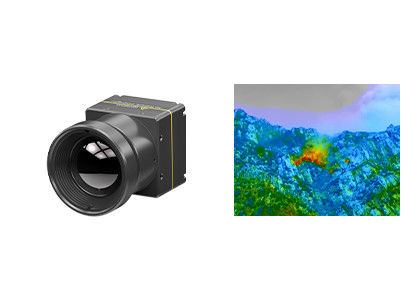

COIN612R Thermal Imaging Core, HD Thermal Camera for Drone

I'm Online Chat Now

COIN612R Thermal Imaging Core, HD Thermal Camera for Drone

COIN612R Thermal Imaging Core, HD Thermal Camera for Drone
COIN612R Thermal Imaging Core, HD Thermal Camera for Drone

Large Image :  COIN612R Thermal Imaging Core, HD Thermal Camera for Drone

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN612/R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: ≤50mK
Spectral Range: 8~14μm Frame Rate: 25Hz/30Hz
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

50mK Thermal Camera For Drone

,

COIN612R Thermal Imaging Core

,

30Hz Thermal Imaging Core

COIN612R Thermal Camera for Drone



COIN612R 640x512 / 12μm Thermal Imaging Camera Core Integrated into Drones for Firefighting



Product Description



COIN612R integrates the 640x512 IR thermal imaging sensor by Global Sensor Technology (GST). It is customized according to the strict requirements of the infrared load of the UAV with small size and flexible, lightweight structure, fully optimizing the SWaP.



The COIN612R is specially designed for the light load commercial unmanned aerial vehicle. It can work throughout day and night without external light sources. It can penetrate heavy smoke, haze and other adverse conditions, with a visual distance of several hundreds of meters. It can also quickly identify human body in complex environment or in camouflage conditions. This IR UAVs can be used in the complex environment of earthquake, fire, mountain torrent or in other disasters. It can quickly locate the trapped people, identify the potential danger on the damaged road, and greatly improve the rescue efficiency; it can also be used to search for camouflage personnel at night, in forest, fog or other environments with blocked vision, to assist the law enforcement officers in fighting criminals.



UAV equipped with COIN612R thermal camera can also be used in other areas, such as enforcement and rescue, firefighting application, animal observation etc.



Main Features


- Mini Size
- Light Weight
- NETD≤50mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration



Product Specifications



Model COIN612R
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤50mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <5s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656; USB2.0; Support Temperature Measurement Parameter Line
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally
Image Algorithm NUC/3DNR/DNS/DRC/EE
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, USB2.0
Supply Voltage 3.5~5.5V
Typical Power Consumption <1W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C (Customizable)
Temperature Accuracy Greater of ±3°C or ±3% (Typical)
SDK Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature
Physical Characteristics
Dimension (mm) 25.4x25.4x25.8 (With 8.8mm Lens)
25.4X25.4X39.5 (With 13mm Lens)
25.4X25.4X38.3 (With 19mm Lens)
Weight 22g±1g (With 8.8mm Lens)
42g±1g (With 13mm Lens)
40g±1g (With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 8.8mm/13mm/19mm



Industrial Applications



The COIN612R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.



COIN612R Thermal Imaging Core, HD Thermal Camera for Drone 0



Our Advantages



COIN612R Thermal Imaging Core, HD Thermal Camera for Drone 1





FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
