Product Details
Resolution 640x512 Power Consumption 0.7W
Spectral Range 8~14μm Pixel Pitch 12μm
Typical NETD ≤40mK Frame Rate 30Hz
High Light

Uncooled Thermal Imaging Module 640x512

,

UAV Payloads Uncooled Thermal Imaging Module

,

12uM Uncooled Drone Thermal Camera

Leave a Message
Product Description
TWIN612 Thermal Imaging Module



Tiny Size 640x512 12μM Uncooled Thermal Imaging Module For UAV Payloads



Product Description

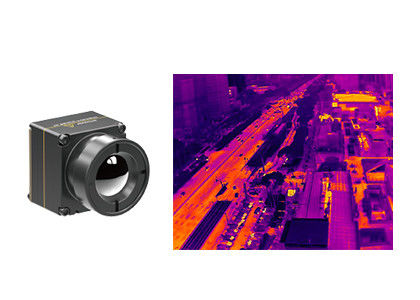

The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm.

iTL612 thermal camera module features in sharp and crisp image presentation, compact size and low cost. Oriented for fully optimized SWaP, iTL612R uncooled thermal module provides a reliable solution for infrared system integration with limited space. Its compact structure has reached top level of the same specification module. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.


Main Features


Compact & Lightweight Design
• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
• Weight: 20.8g±1.5g (with 9.1mm lens)
• Low power consumption as low as 0.7W

Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement

Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control


Product Specifications



Model iTL612/R
IR Detector Performance
Sensitive Material Vanadium Oxide
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD ≤40mk
Image Processing
Frame Rate 30Hz
Start-up Time 5s
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
De-noise (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control & Video Display
Electrical Specifications
Standard External Interface 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)
USB Expansion Board Type-C
Communication Interface RS232-TTL/USB2.0
Digital Video Interface CMOS8/USB2.0
Supply Voltage 3.3V±0.1V VDC
Typical Power Consumption 0.7W
Temperature Measurement
Operating Temperature Range -10°C~+50°C
Temperature Measurement Range -20°C~+150°C, 0°C~550°C; Support Customization and Expansion
Temperature Measurement Accuracy Greater of ±3°C or ±3% (@23℃±3℃)
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 21×22.3×27.3 (With 9.1mm Lens)
Weight 20.8g±1.5g (With 9.1mm Lens)
Environmental Adaptability
Operating Temperature -40°C~+70°C
Storage Temperature -45°C~+85°C
Humidity 5%~95%, Non-condensing
Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificates ROHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 9.1mm



Industrial Applications


The iTL612/R thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Uncooled Thermal Imaging Module Tiny Size 640x512 12uM For UAV Payloads 0


Global Sensor Technology


Uncooled Thermal Imaging Module Tiny Size 640x512 12uM For UAV Payloads 1

Uncooled Thermal Imaging Module Tiny Size 640x512 12uM For UAV Payloads 2


FAQs



1.About ceramic packaging infrared detector

Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. For ceramic packaging, its readout circuit has self-adjusting operating temperature function and does not require TEC stabilization.



2. Pseudo color - Ironbow

By showing heat distribution and subtle details through color, thermal anomalies and body heat can be quickly identified. With ironbow pseudo color, hotter objects appear as light warm colors, while cooler objects appear as deep cool colors. It is mainly used for temperature measurement.
