Drone Infrared Camera Module for Electricity Power Inspection

I'm Online Chat Now

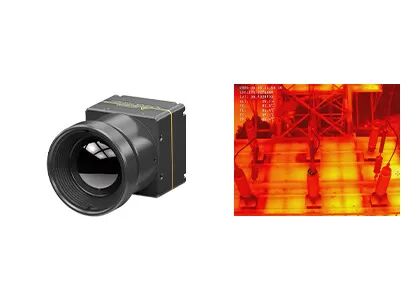

Drone Infrared Camera Module for Electricity Power Inspection

Drone Infrared Camera Module for Electricity Power Inspection
Drone Infrared Camera Module for Electricity Power Inspection

Large Image :  Drone Infrared Camera Module for Electricity Power Inspection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN612R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm Typical NETD: ≤40mK
Spectral Range: 8~14μm Size: 21x22.3x15.6 (With 9.1mm Lens)
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

ITL612R Drone Infrared Camera

,

Drone Infrared Camera Module

COIN612R Drone Thermal Camera


COIN612R 640x512 / 12μm Drone Thermal Camera with Aerial Thermography and Clear Imaging


Product Description


COIN612R is a radiometric thermal camera for drones and can be widely used in the area of industrial inspections, technical diagnostics, predictive maintenance etc. It is a uncooled LWIR infrared camera with spectral range from 8 to 14μm.

The COIN612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.


Main Features


- Mini Size: 21x22.3x15.6 (With 9.1mm Lens)
- Light Weight
- Typical NETD≤40mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration


Product Specifications



ModelCOIN612/R
IR Detector Performance
Sensitive MaterialVanadium Oxide
Resolution640×512
Pixel Pitch12μm
Spectral Range8μm ~14μm
Typical NETD≤40mK
Image Processing
Frame Rate25Hz/30Hz
Start-up Time5s
Analog VideoPAL/NTSC
Digital VideoRAW/YUV/BT656
Image AlgorithmNon-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image DisplayBlack Hot/White Hot/Pseudo Color
PC Software
ICC SoftwareModule Control & Video Display
Electrical Specifications
Standard External Interface50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)
USB Expansion BoardType-C
Communication InterfaceTTL-232/USB2.0
Digital Video InterfaceCMOS8/CMOS16/LVDS/USB2.0
Supply Voltage4~5.5V
Typical Power Consumption0.9W
Temperature Measurement
Operating Temperature Range-10℃~+50℃
Temperature Measurement Range-20℃~150℃, 0℃~550℃ (Support Expansion & Customization)
Temperature Measurement AccuracyGreater of ±3℃ or ±3%
Regional Temperature MeasurementSupport Maximum, Minimum and Average Value of the Output Regional Temperature
SDKWindows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm)25.4×25.4×27.4 (With 9.1mm Lens)
25.4×25.4×39.5 (With 13mm Lens)
25.4×25.4×38.3 (With 19mm Lens)
Weight27g±2g (With 9.1mm Lens)
40g±2g (With 13mm Lens)
41g±2g (With 19mm Lens)
Environmental Adaptability
Operation Temperature-40°C ~ +70°C
Storage Temperature-45°C ~ +85°C
Humidity5%~95%, non-condensing
VibrationRandom Vibration 5.35grms, 3 Axis
ShockHalf-sine Wave, 40g/11ms, 3 Axis 6 Direction
CertificateROHS2.0/REACH
Optics
Optional LensFixed Focus Athermal: 9.1mm/13mm/19mm
Protection LevelIP67 Rating (Front Surface)



Industrial Applications


The COIN612R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.

Drone Infrared Camera Module for Electricity Power Inspection 0

Our Advantages


Drone Infrared Camera Module for Electricity Power Inspection 1


FAQs


1. What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.

2. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.

3. What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
