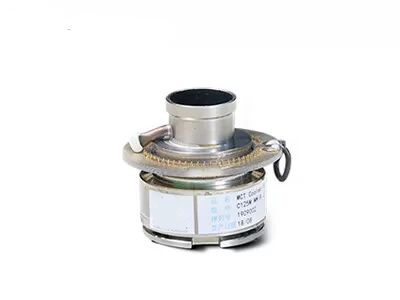

FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm

  • FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C125M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 128x128 NETD ＜20mK
Spectral Range 3.7~4.8μm MW Pixel Size 25μm
Highlight

Cooled Infrared Detector 25uM

,

Mid Wave MCT Infrared Detector

,

128x128 Resolution Infrared Detector
Leave a Message
Product Description

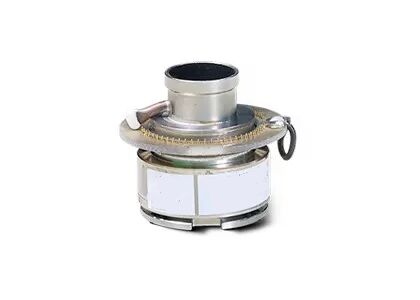

C125M MWIR Cooled Infrared Detector


FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm


Product Description


The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.


The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.


 Main Features


• Resolution: 128x128
• Pixel Size: 25μm
• High Sensitivity
- Compact Design
- Lightweight

• Throttling cool down, fast startup
• Small size, light weight, compact structure
• No vibration
• No electromagnetic interference


Product Specifications


Model C125M MWIR
Sensitive Material HgCdTe/MCT
Resolution 128×128
Pixel Size 25μm
Spectral Range 3.7μm±0.2μm～4.8μm±0.2μm
Working Mode Snapshot; Integration Mode; Anti-blooming
Charge Capacity 24Me-/8Me-
Dynamic Range ≥80dB
Number of Output Single; Up to 6.5MHz
Cryocooler JF428 JF618
Typical NETD 10mK (F1.5) 10mK (F2)
Effective Pixel Rate ≥99.5% ≥99.5%
Response Non-uniformity ≤5% ≤5%
Cooling Time (20℃) ≤5s (50MPa, Ar, 20℃) ≤20s (50MPa, Ar, 20℃)
Maximum Size (mm) Φ35×48.5 Φ35×42.5
Weight ≤100g ≤90g
Operating Temperature -45℃～+71℃ -45℃～+71℃


Our Service



Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.

Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.

Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.

Remote Technical Support: 24/7 support—quick response and timely resolution for critical issues.

Warranty: Original parts and strict process adherence to restore optimal performance.


FAQs


1. Application of LWIR, MWIR/LWIR Duel-color Cooled Infrared Detector


In infrared thermal imaging technology, long-wave thermal detectors has strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in the dusty atmosphere, ship sails on the water with reflective light and aircraft is flying through the cloud.

The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in the duel wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
