Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler

I'm Online Chat Now

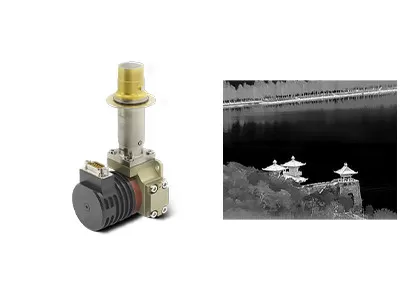

Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler

Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler
Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler

Large Image :  Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C615M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512/15μm NETD: ≤17mK (F2); ≤18mK (F4)
Spectral Range: 3.7~4.8μm MW Material: MCT/HgCdTe
High Light:

MWIR Cooled Infrared Detectors

,

RS046H Cooled Infrared Detectors

,

Flexible mwir detector

About C615M Cooled Infrared Detector



Flexible Design 640x512 / 15μm MWIR Cooled Infrared Detector with RS046H Split Stirling Cooler



Product Description



C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.



Benefit from the split design of the compressor and the cold finger, the configuration with split cooler RS046H dewar cooler assembly is suitable for the design of the whole system which needs flexible space arrangement and strict size requirements such as handheld, UAV load, pod and other applications.



 Main Features



- Resolution: 640x512

- Pixel Pitch: 15μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C615M MW
Material MCT
Resolution 640x512
Pixel Pitch 15μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 9.1Me-/6.5Me-(ITR)
7.8Me-/5.2Me-(IWR)
Dynamic Range ≥75dB
Number of Output 4; Up to 10Mpixel/s per Output
NETD F2: ≤17mK
F4: ≤18mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046
Steady Power Consumption ≤6W@RS058
≤5W@RS046
Max Power Consumption ≤12W @ RS058
≤11W @ RS046
Power Supply RS058: 24V DC
RS046: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046
Weight ≤600g @ RS058
≤350g @ RS046
Dimension (mm) RS046: 122x46.3x82
RS058: 147x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler 0



Exhibitions


Flexible MWIR Cooled Infrared Detectors With RS046H Split Stirling Cooler 1


FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2.What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3.What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
