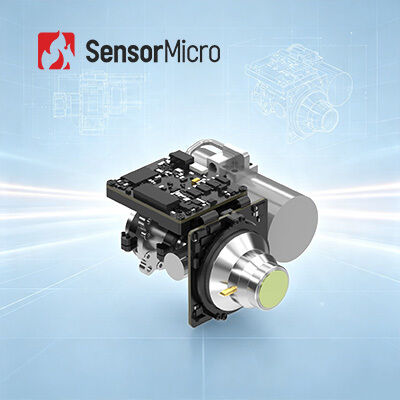

Fast Integration 1280×1024 Resolution 10μm Pixel Pitch 1~100Hz Adjustable Frame Rate Cooled Infrared Camera Module
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | EYAS G1210HMF |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 1280x1024 | Pixel Pitch | 10μm |
|---|---|---|---|
| NETD | 20mK(F2); 25mK(F4) | Spectral Range | 3.7~4.8μm MW |
| Size | 102×87×57mm | Frame Rate | 1~100Hz Adjustable |
| Highlight | IR Cooled Camera Modules 12um,149x58.5x71mm Cooled Camera Modules |
||
Product Description
Fast Integration IR Cooled Camera Module EYAS G1210HMF Mega Pixel 1280×1024/10μm
Product Overview
The EYAS G1210HMF integrates a 1280×1024/10 μm megapixel HOT MWIR cooled infrared detector with an AD circuit board, equipped with a high-performance linear Stirling cryocooler. It supports real-time conversion of analog signals into digital video streams, and integrates drive power and control timing functions, enabling quick system platform integration.
This helps OEM customers efficiently perform detector testing and validation, significantly simplifying system integration and accelerating development progress. Thanks to HOT technology, the EYAS G1210HMF achieves optimized SWaP (size, weight, and power) while maintaining high performance, making it ideal for integrated applications with demanding requirements for image quality and reliability.
Key Features
- Megapixel Clarity, Fast Development: Developed based on a 1280×1024/10μm megapixel HOT MWIR cooled infrared detector, delivering superior imaging details with integrated AD circuit for quick platform integration
- HOT Technology, SWaP Optimization: Focal plane operating temperature raised to 150K with minimal size (≤102×87×57mm), lightweight design (390g), and low power consumption (6W)
- Outstanding Performance, Easy Integration: Adjustable frame rate from 1-100 Hz for capturing fast-moving targets, CameraLink interface outputs 16-bit raw data with serial port control
Technical Specifications
| Model | EYAS G1210HMF |
|---|---|
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Frame Rate | 1~100Hz, adjustable (50Hz by default) |
| Working Mode | Snapshot, ITR/IWR Integration Modes, Anti-blooming, Windows Mode |
| Digital Video | 16 bit CameraLink (CameraLink DualBase mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 12V |
| Steady Power (23℃) | ≤6W |
| Cooling Time(23℃) | ≤3min |
| Size | 102×87×57 mm |
| Weight | ≤390 g |
| Operating Temperature | -40℃~+71℃ |
Industrial Applications
The EYAS G1210HMF thermal imaging module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs. We exist to empower people and systems to see beyond the surface—into the patterns, problems, and possibilities that lie beneath.
By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity. Our business spans security, firefighting, industrial inspection, medical care, machine vision, environmental monitoring, and key aspects of carbon neutrality.
Frequently Asked Questions
Application of LWIR, MWIR/LWIR Dual-color Cooled Infrared Detector
In infrared thermal imaging technology, long-wave thermal detectors have strong penetration through dusty atmospheres and are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in dusty atmospheres, ship sails on water with reflective light, and aircraft flying through clouds.
The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in dual wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
