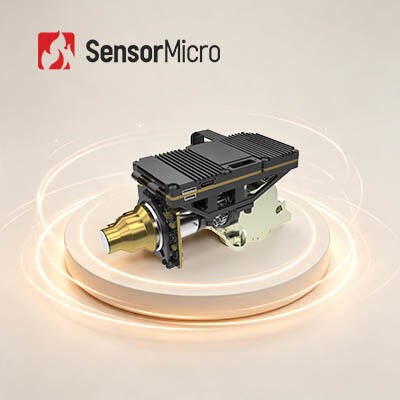

MWIR Cooled Thermal Module with 640x512 Resolution and 15μm Pixel Size for High Sensitivity 20mK NETD
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | GAVIN GC615MB |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 15μm | IR Detector NETD (23℃) | 20mK(F4); 25mK(F5.5) |
|---|---|---|---|
| Spectral Range | 3.7~4.8μm MW | Frame Rate | 50Hz/100Hz |
| Size | 120×84×60mm | Weight | ≤440g |
| Highlight | Electro Optical Infrared System MWIR Module,MWIR Cooled Thermal Module 15um |
||
Product Description
MWIR Cooled Thermal Module 640x512 15μm for Electro Optical Infrared System
Product Overview
GAVIN GC615MB is a cooled mid-wave thermal imaging module developed by SensorMicro. The GAVIN GC615MB MWIR cooled infrared core integrates a 640×512/15μm MWIR detector with an RS046 low-temperature Stirling cryocooler.
It features built-in image processing algorithms and offers a comprehensive range of specifications with excellent consistency, fully meeting the demands of large-scale industrial applications. Even in complete darkness or harsh weather conditions, the camera core delivers clear thermal images and accurate detection of both distant threats and close-range details. Ideal for security, surveillance, and monitoring scenarios, the GAVIN GC615MB infrared camera core provides reliable technological support across diverse environments.
Main Features
- Mainstream FPA, Broad Compatibility - Powered by a 640×512/15μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity.
- High Reliability, Superior Sensitivity - MWIR cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD ≤ 20mK.
- Easy Integration, Flexible Configuration - Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.
Product Specifications
| Model | GAVIN GC615MB |
|---|---|
| Indicators |
Resolution: 640×512 Pixel Size: 15μm Cryocooler: RS046 Spectral Response: 3.7μm±0.2μm～4.8μm±0.2μm IR Detector NETD(23℃): 20mK(F4), 25mK(F5.5) |
| Image Processing |
Frame Rate: 50Hz/100Hz Dimming Mode: Linear/Histogram/Mixed Digital Zoom: 1× to 8× continuous digital zoom Image Direction: Horizontally/Vertically/Diagonally Flip Image Algorithm: DRC, 2D/3D Image Noise Reduction, EE |
| Electrical |
Standard External Interface: J30JZ25 25PIN Analog Video: PAL/NTSC Digital Video: Standard: DVP/LVDS/USB2.0@50Hz; Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber External Sync: Standard: LV-TTL; Option: RS422/LVDS Communication: Standard: USB2.0/LV-TTL; Option: RS422/CAN/USB3.0/GigE Power Supply: 24V±4V Steady Power Consumption(23℃): ≤10W Cooling Time(23℃): ≤8min |
| Size & Weight | Size: 120×84×60mm; Weight: ≤440g |
| Operating Temperature | -40℃~+71℃ |
| Vibration | Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction |
| Optical Lens |
Fixed focus: 25mm/F2 Continuous zoom: 15~300mm/F4 23~450mm/F4 |
Industrial Applications
The GAVIN GC615MB thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.
Cooled & Uncooled Thermal Imaging Solutions
- High sensitivity and excellent performance
- World-leading technology in infrared industry
- Various infrared detectors available - both uncooled and cooled IR detectors in different formats and pixel sizes
- Volume production to ensure fast delivery - three production lines with annual production capability up to millions of detectors
About SensorMicro
SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
1. Working Principle of Optical Gas Imaging
The optical gas imaging camera can quickly detect the gas without temporarily stopping the production line by identifying the infrared radiation difference between the gas and the background and visualizing the gas whether the leakage exists, and accurately locate the leakage source.
2. Application of Optical Gas Imaging
The development and integration of optical gas imaging solution based on SensorMicro infrared detectors & thermal modules have very mature and widely applied in various industries to solve various gas leakage problems for customers, such as petroleum, natural gas, chemical industry, electric power and environmental protection monitoring, and making great contribution to environmental protection, energy conservation, safe production and occupational health.
