|Resolution||640x512 / 15μm||NETD||≤20mK|
|Spectral Range||3.7~4.8μm MW||Frame Rate||50Hz/100Hz|
MWIR Cooled Thermal Module 15um,
640x512 MCT Cooled Thermal Module
640x512 / 15μm MCT MWIR Cooled Thermal Module for Multi Sensor Payload

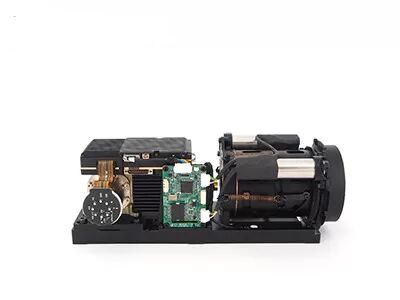

GAVIN615B is a cooled mid wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 640x512 / 15µm HgCdTe MWIR IR detector with RS046 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.

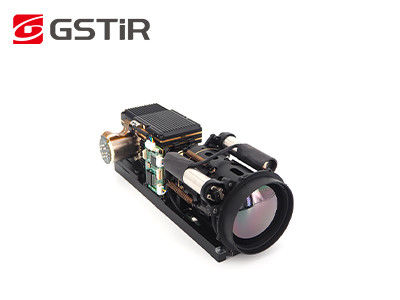

Configured with RS046 cryocooler, the GAVIN615B is very compact in size, measuring 125x92x67mm in dimension and weighing less than 650g in weight. It’s stable power consumption is as low as 12w. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN615B thermal imaging module.
- High Sensitivity, NETD≤20mK
- Long Range Detection
- Adjustable Frame Rate
- Easy Integration into the System
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Cooling Time (20°C)||≤7min|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin|
|Digital Video||16bit RAW/YUV: 16bit DVP/Cameralink Output|
|External Sync||Frame External Sync: RS422 Level|
|Stable Power Consumption||12W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Continuous Zoom
The GAVIN615B thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2. Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
