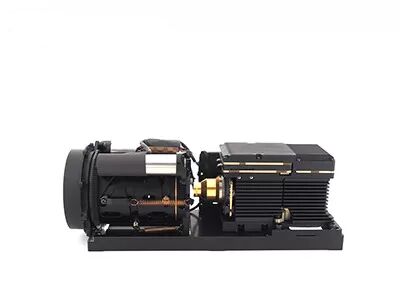

Optical Gas Imaging MWIR Cooled Camera RS058 For Visualizing Invisible VOCs
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Function||Gas Leak Detection||Cryo Cooler||RS058|
|Detector Resolution||320x256||Pixel Size||30μm|
RS058 MWIR Cooled Camera,
Invisible VOCs MWIR Cooled Camera
MWIR Cooled Optical Gas Imaging Camera RS058 For Visualizing Invisible VOCs
320x256 / 30μm MWIR Cooled Optical Gas Imaging Camera for Visualizing Gas Leaks
With high performance signal processing circuit and advanced image processing algorithm, GAS330 cooled thermal module for gas leak detection is developed on the basis of HgCdTe mid-wave cooled infrared detector. By using the infrared thermal imaging technology, GAS330 can visualize the VOCs gas (volatile organic compounds) that can't be seen by naked eyes. It is effective to detect VOCs leakage in the production and transportation process of petrochemical enterprises, and has great application value in safety production, environmental protection supervision, cost saving.
High Sensitivity Detection
• Highly sensitive infrared detector, NETD≤15mK
• Quite efficient in application of low gas concentration and slow gas flow
• Long distance non-contact detection of VOCs gas includes alkanes, alkenes, alcohols, benzenes, ketones etc.
• Professional gas detection image processing algorithm
• Various lenses, more FOV & scenes available
• Cameralink/DVP/USB/ GIG-E image output interface for quick integration into thermal imagers
|IR Detector Performance|
|Spectral Range||3.2μm±0.1μm~3.5μm±0.1μm MW|
|Cooling Time (20°C)||≤8min|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||J30JZ 25pin|
|Digital Video||16bit RAW/YUV: 16bit DVP/Cameralink Output|
|External Sync||Frame External Sync: RS422 Level|
|Stable Power Consumption||12W|
|Operation Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
|Optional Lens||Fixed Zoom: 23mm/F1.5; 55mm/F1.5|
The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2. Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
