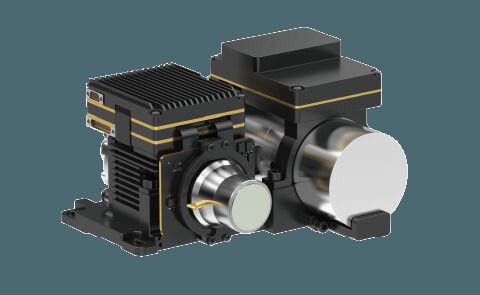

320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number GAS330
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 320x256 / 30μm Spectral Range 3.2±0.1~3.5±0.1μm
NETD ≤15mK Frame Rate 30Hz
Product Size 155x67x80mm Product Weight ≤900g
Leave a Message
Product Description
GST GAS330 for Gas Leak Detection



320x256 / 30μm GAS330 Cooled Infrared Camera Module for Non-contact Gas Leakage Detection



Product Description



GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It uses 320x256 / 30μm cooled MWIR infrared detector. It utilizes spectral wavelength filtering technology to visualize the invisible VOCs (Volatile Organic Compounds) that cannot be seen by naked eyes.



GAS330 infrared gas leak detection camera is specific for detecting minute fugitive emissions of industrial gases. Its high sensitivity is suitable for detection scene with low gas concentration and slow gas flow rate. Inspectors can find the gas that pollutes the environment or is harmful to personnel assets, and timely avoid profitable gas loss.



Its real time non-contact measurement is also helpful for inspectors to detect the gas leakage in dangerous areas or areas that are difficult to access, so as to ensure the safety of inspection personnel. It has great application value in safety production, environmental protection supervision and cost saving.



Main Features



- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



About GST IR Detectors



320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection 0



FAQs



1. Advantages of Optical Gas Imaging

Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function

2.Working Principle of Optical Gas Imaging

Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.

After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.

The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.


3. Thermal Sensitivity



Smaller NETD guarantees more sensitive detection. GST infrared detectors and thermal imaging modules offers gas enhancement algorithm for more subtle leak detection.
