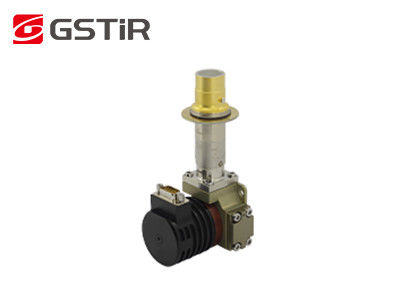

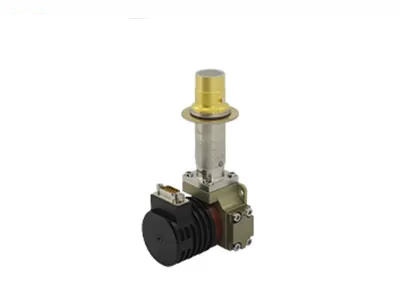

Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

Product Description



C615S LWIR integrated dewar cooler assembly is one of T2SL cooled infrared detectors developed by Global Sensor Technology (GST). It is a 640x512 / 15µm Type II Superlattice (T2SL), Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.



With 640x512 resolution and reduced pixel pitch to 15µm, the C615S LWIR integrated dewar cooler assembly provides clear image and superior performance. It features in most advanced technology, high quantum efficiency, high frame rate, high sensitivity, low noise, best non-uniformity etc.



As a LWIR detector, it presents high performance under the conditions of sand or dust climate and will not be affected by sunlight flicker or any high temperature flame.



Main Features



- Resolution: 640x512

- Pixel Pitch: 15µm

- High Sensitivity

- Good Imaging Effect

- Low Noise

- Stable Performance

- Excellent Non-uniformity



Product Specifications



Model C615S LWIR
Material T2SL
Resolution 640x512
Pixel Pitch 15um
Spectral Range 7.7μm~9.5μm LW
Working Mode Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming
Charge Capacity ITR: 12.22Me-/6.67Me-
Interlace Binning: 24.44Me-/13.33Me-
Dynamic Range ITR: ≥76dB
Interlace Binning: ≥77dB
Output Channel 4; Up to 22.5 Mpixel/s per Output
NETD ≤30mK(F2 ITR)
≤25mK(F2 Interlace Binning)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cooler Type RS058
Steady Power Consumption <8W
Max Power Consumption <17W
Power Supply 24V DC
Cooling Time <5min30s
Weight ≤600g
Dimension (mm) 148x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615S LWIR cooled IR detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
