EYAS330 MWIR Cooled Camera Modules Infrared Camera Core 320x256 30μM
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Size||142x58.5x71mm||Resolution||320x256 / 30μm|
|Characteristics||Easy Integration||Type||Cooled AD Modules|
30uM Cooled Camera Modules,
MWIR Infrared Cooled Camera Modules,
320x256 Camera Core Modules

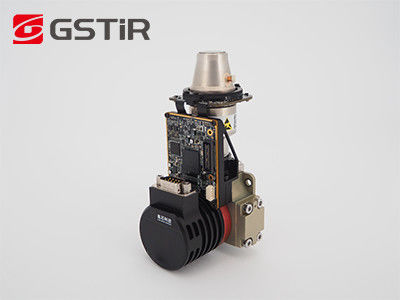

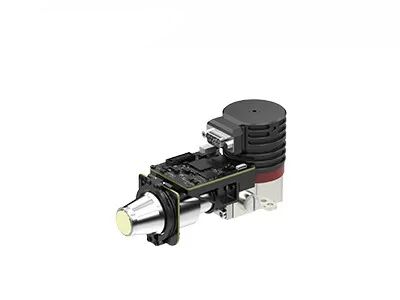

EYAS330 MWIR Cooled Camera Modules Infrared Camera Core 320x256 30μm
EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS330 is a member of EYAS family with 320x256 / 30μm MWIR detector and RS058 dewar cooler integrated.
Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Cooling Time (25°C)||≤6min|
|Optimal NETD (20°C)||≤9mK|
|Frame Rate||1~200Hz Adjustable|
|Working Mode||Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming|
|Standard External Interface||QSH 60pin|
|Digital Video||Cameralink: Output 16bit Raw Data|
|External Sync||CC1: INT/Frame External Sync; CC2: MC External Sync|
|Communication||Cameralink Serial Port: TFG+/-, TC+/-; 9600bps|
|Power Supply||1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
|Stable Power Consumption||7W|
|Working Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
The EYAS330 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1.What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.
2. What is the applications of infrared thermal imaging?
Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
3. What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
4. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
5. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
6. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
