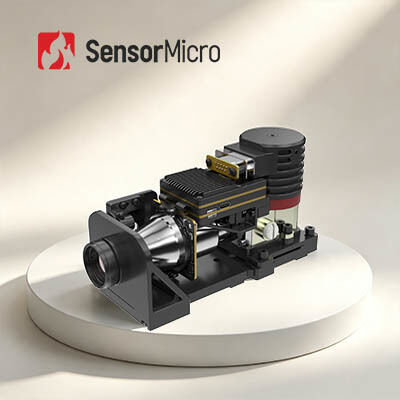

Cooled MWIR Thermal Camera Core with 640x512 Resolution and 15μm Pixel Size for Long Range Surveillance

  • Cooled MWIR Thermal Camera Core with 640x512 Resolution and 15μm Pixel Size for Long Range Surveillance
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC615MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type Cooled Camera Module Frame Rate 50Hz/100Hz
Resolution 640x512/15μm IR Detector NETD (23℃) 16mK(F2); 18mK(F4)
Size 142×58.5×80mm Mid Wavelength 3.7~4.8μm
Highlight

Cooled Thermal Camera Core 15um

,

640x512 Cooled Camera Core

,

MCT MWIR Thermal Camera Core
Leave a Message
Product Description
Cooled MWIR Thermal Camera Core 640x512 15μm for Long Range Surveillance
Product Overview

GAVIN GC615MA is a cooled mid-wave thermal imaging module featuring a 640x512/15µm cooled MWIR IR detector with RS058 cryocooler. The integrated hardware electronics and advanced image processing algorithms deliver sharp, clear thermal images with exceptional performance.

Built with advanced AI image algorithms, this camera core offers comprehensive specifications with excellent consistency and stability. It supports large-scale, reliable supply to meet diverse industrial application requirements. Even in complete darkness or harsh weather conditions, the camera core provides clear thermal imaging and accurate detection of both distant threats and close-range details.

Main Features
  • Mainstream FPA, Broad Compatibility: Developed with 640×512/15μm MWIR cooled infrared detector for stable image quality; integrated next-generation image algorithms including DRC, 2D/3D noise reduction, and EE (edge enhancement) for clearer imaging
  • High Reliability, High Sensitivity: Mid-wave cooled infrared ensures excellent versatility and consistency; high thermal sensitivity with NETD as low as 16mK
  • Easy Integration, Flexible Configuration: Cameralink video interface with RAW/YUV image data output; multiple continuous zoom optical configurations available
Product Specifications
Model GAVIN GC615MA
Indicators
Resolution 640×512
Pixel Size 15μm
Cryocooler RS058
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 16mK(F2)
18mK(F4)
Image Processing
Frame Rate 50Hz/100Hz
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Analog Video PAL/NTSC
Digital Video Standard: DVP/LVDS/USB2.0@50Hz
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤10W
Cooling Time(23℃) ≤8min
Size(mm) 142×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Optical Lens
Lens Options Fixed focus: 25mm/F2
Continuous zoom: 30~240mm/F4, 15~300mm/F4, 45~450mm/F4, 35~690mm/F4, 32~730mm/F4
Industrial Applications

The GAVIN GC615MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.

About SensorMicro

SensorMicro is the world leading infrared detector manufacturer and service provider, delivering high performance uncooled and cooled thermal imaging detectors along with professional application experience to customers worldwide.

We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.

SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.

Frequently Asked Questions
What is Pseudo Color?
Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system, displayed on the monitor in grey level or pseudo color. This enables users to obtain the temperature distribution of objects. To facilitate easier visual analysis of thermal images, they are represented using false colors that indicate temperature differences.
How many pseudo color options does our thermal imaging module offer?
Our thermal imaging module offers multiple pseudo color options including: White Hot, Lava, Ironbow, Hot Iron, Medical, Arctic, Rainbow1, Rainbow2, and Red Hot.
