OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector

I'm Online Chat Now

OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector

OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector
OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector

Large Image :  OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024 Pixel Pitch: 12μm
NETD: ≤20mK Spectral Range: 3.7~4.8μm MW
Size: 149x58.5x71mm Frame Rate: 1~100Hz Adjustable
High Light:

OEM Cooled Camera Module

,

12um Infrared Detector Cooled Camera Module

,

MWIR Detector Cooled Camera Modules

OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector

EYAS1212 High Definition Thermal Module

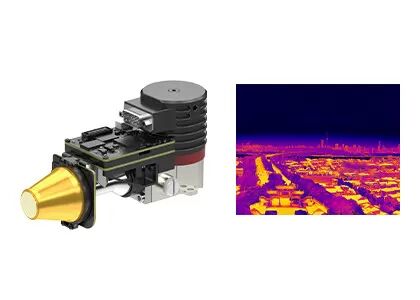

High Resolution 1280x1024 / 12μm MCT MWIR Cooled Infrared Module with Proximity Board



Product Description



EYAS1212 is a high resolution analog-digital cooled infrared module based on 1280x1024 formats 12μm pitch IR FPA.



This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.



Therefore, EYAS1212 AD module makes it easy for OEM customers to carry out fast acceptance test on GST C1212M 1280x1024@12μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Equipped with high performance signal processing circuit, EYAS series cooled AD module is applicable to all MCT&T2SL cooled infrared detectors by GST.

Main Features



High Performance Cooled Infrared Detector
• High thermal sensitivity with best NETD<18mk



Easy to Develop & Integrate
• Cameralink interface output 16bit raw data, serial port control
• Integrated structure that has consistent dimension with detector



Capture High Speed Moving Target
• Output frame frequency is adjustable at 1~100Hz



Product Specifications



Model EYAS1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤20mK
Working Mode
Frame Rate 1~100Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 9W
Dimension (mm) 149×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS1212 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector 0



Our Advantages



OEM Cooled Camera Module With MWIR MCT 1280x1024 12um Infrared Detector 1



FAQs



1. What is thermal sensitivity?

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.



2. What are the applications of thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.



3. What is MCT/HgCdTe detector?

MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.

Contact Details
WUHAN GLOBAL SENSOR TECHNOLOGY CO., LTD.

Contact Person: Sales Manager

Tel: +8613125195785

Send your inquiry directly to us (0 / 3000)
