Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm

I'm Online Chat Now

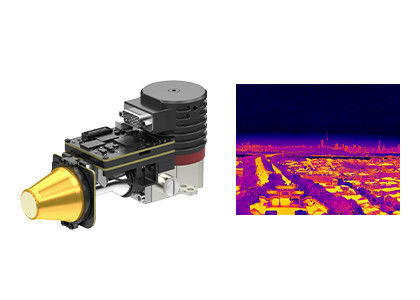

Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm

Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm
Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm

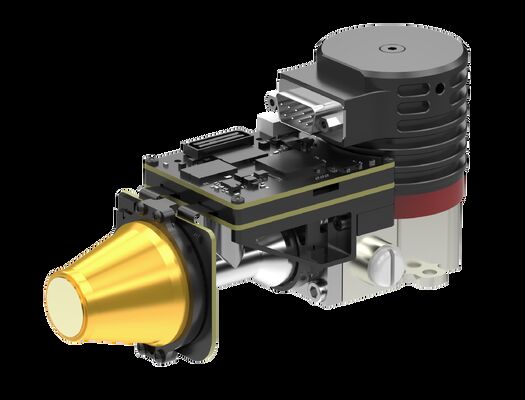

Large Image :  Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: EYAS1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024 Pixel Pitch: 12μm
NETD: ≤20mK Spectral Range: 3.7~4.8μm MW
Size: 149x58.5x71mm Frame Rate: 1~100Hz Adjustable
High Light:

Cooled Ir Camera 1280x1024

,

Cooled Ir Camera Core

,

EYAS1212 Cooled Ir Camera

EYAS1212 Cooled Thermal Core



EYAS1212 Mega Pixel 1280x1024 / 12μm MCT MWIR Cooled Infrared Module for Fast Integration



Product Description



EYAS1212 is a high resolution analog-digital cooled infrared module based on 1280x1024 formats 12μm pitch IR FPA.



This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.



Therefore, EYAS1212 AD module makes it easy for OEM customers to carry out fast acceptance test on GST C1212M 1280x1024 / 12μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time (25°C) ≤6min
Optimal NETD (20°C) ≤20mK
Working Mode
Frame Rate 1~100Hz Adjustable
Working Mode Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 9W
Dimension (mm) 149×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS1212 thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm 0



About GST Infrared Team



Fast Integration Cooled IR Camera Core EYAS1212 Mega Pixel 1280x1024 / 12μm 1



FAQs



1. What are the characteristics of cooled & uncooled infrared focal plane detector?

Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.



2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3. What is MCT/HgCdTe detector?

MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.
