640x512 Thermal Imaging Module Integrated Into Drones For Inspection

I'm Online Chat Now

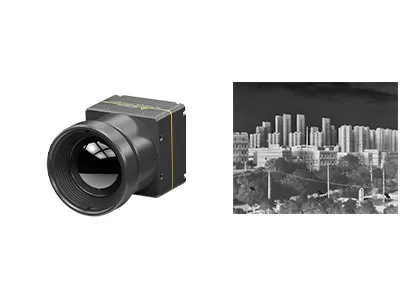

640x512 Thermal Imaging Module Integrated Into Drones For Inspection

640x512 Thermal Imaging Module Integrated Into Drones For Inspection
640x512 Thermal Imaging Module Integrated Into Drones For Inspection

Large Image :  640x512 Thermal Imaging Module Integrated Into Drones For Inspection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512/17μm Type: Thermal Camera For Drone
NETD: ≤40mK Spectral Range: 8~14μm
Size: 44.5x44.5x50.8 (With 19mm Lens) Material: VOx
High Light:

640x512 Thermal Imaging Module

,

Drones Thermal Imaging Module

,

Inspection Drone Thermal Camera

640x512 Thermal Imaging Module Integrated Into Drones For Inspection

Uncooled Thermal Camera Module


Uncooled LWIR VOx 640x512 / 17μm Drone Thermal Camera Core for Unmanned Aerial Vehicles


Product Description


PLUG617R thermal imaging module integrates the market preferred uncooled VOx LWIR infrared detector with an optional temperature measurement function ranging from -20℃~550℃. The PLUG617R is specially designed for the heavy load commercial unmanned aerial vehicle.

The UAV that equips with the PLUG617R thermal module can work throughout day and night without external light sources. It can penetrate heavy smoke, haze and other adverse conditions, with a visual distance of several hundreds of meters. It can also quickly identify human body in complex environment or in camouflage conditions.

Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. With this drone camera core, it is easy for OEM customers to carry out fast acceptance test on GST thermal modules, start rapid secondary development and greatly reduce the cost of their development.


Main Features


- NETD≤40mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability


Product Specifications



Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤40mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time ≤15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS; Support UVC Video Transmission Protocol
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <2W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy Greater of ± 2℃ or 2% (Typical )
SDK Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature
Physical Characteristics
Dimension (mm) 44.5x44.5x50.8 (With 19mm Lens)
Weight 127g±3g (With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificate RoHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 19mm



Industrial Applications


The PLUG617R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.

640x512 Thermal Imaging Module Integrated Into Drones For Inspection 0

Solution for UAV Payloads


640x512 Thermal Imaging Module Integrated Into Drones For Inspection 1

Our Advantages


640x512 Thermal Imaging Module Integrated Into Drones For Inspection 2


FAQs


1.In which industries are focal plane array infrared detectors used in?
Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.

2. What are the characteristics of cooled & uncooled infrared focal plane detector?
Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
