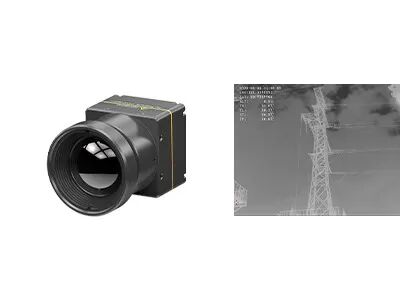

640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles

I'm Online Chat Now

640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles

640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles
640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles

Large Image :  640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: COIN612R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Spectral Range: 8~14μm Resolution: 640x512 / 12μm
Temperature Range: -20℃~+550℃ (Customizable) NETD: <40mK
Temperature Accuracy: ±3℃ Or ±3% Size: 25.4x25.4x14.1mm
High Light:

12um UAV Thermal Camera Core

,

Unmanned Aerial Vehicles Thermal Camera Core

,

UAV Drone Thermal Camera Core

Brief Introduction



640x512 / 12μm UAV Thermal Camera, Thermal Imaging Camera for Unmanned Aerial Vehicles



Product Description



COIN612R thermal camera for drone is developed by Global Sensor Technology (GST). It is small in size and light in weight, which can be easily integrated into light UAVs to realize all-weather monitoring of the air and ground conditions.



The COIN612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal detector sensor and thermal image sensor module. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.



Main Features


- Mini Size
- Light Weight
- NETD≤50mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration



Product Specifications



Model COIN612R
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤50mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <5s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656; USB2.0; Support Temperature Measurement Parameter Line
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally
Image Algorithm NUC/3DNR/DNS/DRC/EE
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, USB2.0
Supply Voltage 3.5~5.5V
Typical Power Consumption <1W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C (Customizable)
Temperature Accuracy Greater of ±3°C or ±3% (Typical)
SDK Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature
Physical Characteristics
Dimension (mm) 25.4x25.4x25.8 (With 8.8mm Lens)
25.4X25.4X39.5 (With 13mm Lens)
25.4X25.4X38.3 (With 19mm Lens)
Weight 22g±1g (With 8.8mm Lens)
42g±1g (With 13mm Lens)
40g±1g (With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 8.8mm/13mm/19mm



Industrial Applications



The COIN612R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.



640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles 0



UAV Payload Solution



640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles 1



Certificates



640x512 12µm UAV Thermal Camera Core for Unmanned Aerial Vehicles 2





FAQs



1.What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3.What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
