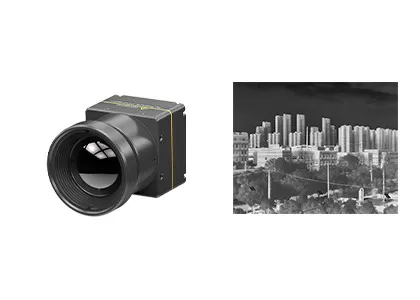

Uncooled 640x512/12μm Thermal Camera Module Light Weight

Uncooled 640x512/12μm Thermal Camera Module Light Weight

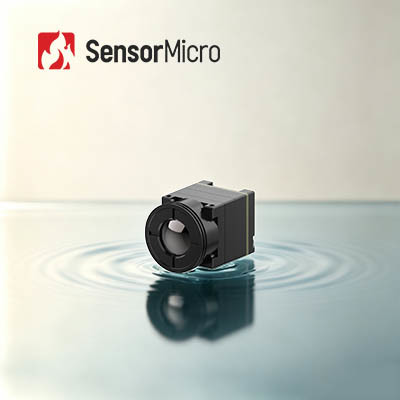

COIN612R thermal camera for drone is developed by SensorMicro. It is small in size and light in weight, which can be easily integrated into light UAVs to realize all-weather monitoring of the air and ground conditions.

The COIN612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

- Mini Size
- Light Weight
- NETD≤50mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration

The COIN612R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.

A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.

Rich Product Variety

Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.

Outstanding Performance

Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.

Easy Integration

Multiple interface options make integration straightforward and enable rapid development across multiple application fields.

1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.

2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
