LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability

LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability
LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability

Large Image :  LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Thermal Camera For Drone Material: VOx
Resolution: 640x512/17μm NETD: ≤40mK
Size: 44.5x44.5x50.8 (With 19mm Lens) Spectral Range: 8~14μm
High Light:

LWIR Thermal Camera Sensor Module

,

VOx Thermal Camera Sensor Module

,

FPA Drone Thermal Camera

LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability

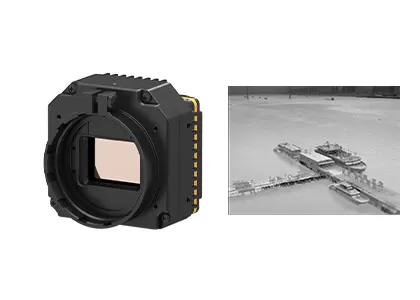

PLUG617R Uncooled Thermal Camera Module



Uncooled LWIR VOx 640x512 / 17μm Drone Thermal Camera Core for Unmanned Aerial Vehicles



Product Description



PLUG617R thermal imaging module integrates the market preferred uncooled VOx LWIR infrared detector with an optional temperature measurement function ranging from -20℃~550℃. The PLUG617R is specially designed for the heavy load commercial unmanned aerial vehicle.



The UAV that equips with the PLUG617R thermal module can work throughout day and night without external light sources. It can penetrate heavy smoke, haze and other adverse conditions, with a visual distance of several hundreds of meters. It can also quickly identify human body in complex environment or in camouflage conditions. This IR UAVs can be used in the complex environment of earthquake, fire, mountain torrent or in other disasters. It can quickly locate the trapped people, identify the potential danger on the damaged road, and greatly improve the rescue efficiency; it can also be used to search for camouflage personnel at night, in forest, fog or other environments with blocked vision, to assist the law enforcement officers in fighting criminals.



UAV equipped with PLUG617R thermal camera can also be used in other areas, such as enforcement and rescue, firefighting application, animal observation etc.



Main Features


- NETD≤40mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤40mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time ≤15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS; Support UVC Video Transmission Protocol
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <2W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy Greater of ± 2℃ or 2% (Typical )
SDK Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature
Physical Characteristics
Dimension (mm) 44.5x44.5x50.8 (With 19mm Lens)
Weight 127g±3g (With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificate RoHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 19mm



Industrial Applications



The PLUG617R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.



LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability 0

Solution for UAV Payloads



LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability 1



FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
