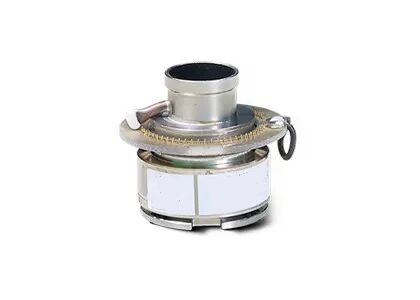

Compact Mid Wave Cooled Infrared Detector MWIR Detector 128x128 25μm

  • Compact Mid Wave Cooled Infrared Detector MWIR Detector 128x128 25μm
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C125M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 128x128 NETD ＜20mK
Spectral Range 3.7~4.8μm MW Pixel Size 25μm
Highlight

Compact Cooled Infrared Detectors

,

Compact MWIR Detector

,

20mK Cooled Infrared Detectors
Leave a Message
Product Description

Mid Wave FPA 128x128 / 25μm MCT Cooled Infrared Detector


Product Description

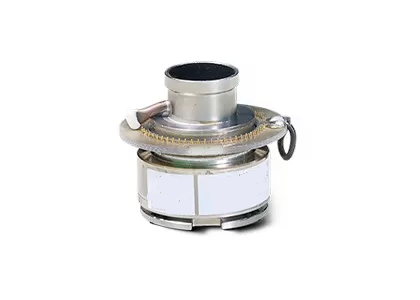

The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.


The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.


 Main Features


- Resolution: 128x128
- Pixel Pitch: 25μm
- High Sensitivity
- Compact Design
- Lightweight


Product Specifications


Model C125M MW
Material MCT
Resolution 128x128
Pixel Pitch 52μm
Spectral Range 3.7μm～4.8μm MW
NETD ＜20mK


About Us



SensorMicro offers comprehensive technical support for product integration and debugging. Our engineers collaborate closely with customers' R&D and production teams, providing detailed product technical documentation, integration guidelines, and on-site technical training. We ensure smooth integration of our infrared detectors, thermal modules, and infrared cores into customers' end products, shortening the R&D cycle and improving production efficiency. For large-scale or complex projects, we also assign dedicated project managers to coordinate resources, track project progress, and address any technical issues in a timely manner.


FAQs


1. What is MCT/HgCdTe detector?

MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.


2. What is T2SL detector?

T2SL refers to Type-II Superlattice, which is an artificial material with alternating growth periodic heterojunction at nanometer size. It has high uniformity and superior optical property, such as large electron effective mass,large absorption coefficient and high quantum efficiency. Compared with MCT infrared detector, the T2SL infrared detector has good material uniformity, low cost, and similar performance to MCT infrared detector in medium and long wave band, but has great advantages in very long wave band.
