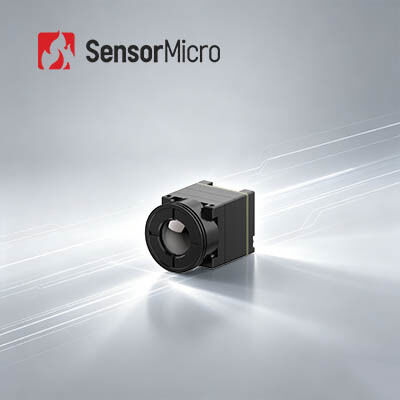

25mK NETD Uncooled Thermal Camera Core with 640x512 Resolution and Low Power Consumption

  • 25mK NETD Uncooled Thermal Camera Core with 640x512 Resolution and Low Power Consumption
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL612 PLUS
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 12μm NETD ≤25mK
Spectral Range 8~14μm Digital Video RAW/YUV/Matrix-TEMP
Digital Frame Rate 25/30/50Hz Communication Interface TTL-232/USB2.0
Highlight

50mK Drone Thermal Camera

,

640x512 Drone Thermal Camera
Leave a Message
Product Description
25mK Uncooled Thermal Camera Core 640x512 12µm Low Power Consumption
Product Overview

Tailored for compact infrared system integration, the iTL612 PLUS ultra-miniature infrared camera core simplifies the entire equipment development and iteration process. Adopting advanced ApexCore 640×512/12μm wafer-level detection technology, it integrates high-performance imaging capabilities into an ultra-small 17.3×17.3×24.2mm module with only 13.7g weight, greatly reducing equipment volume and load burden.

Its 0.65W ultra-low power design extends device battery life and reduces overall system power consumption. With excellent ≤25mK thermal sensitivity and optimized imaging algorithms, it ensures stable and clear thermal detection in complex environments. Supporting multiple lens options, full-range mainstream interfaces and diverse data output modes, the core enables seamless secondary development and flexible deployment for various miniaturized thermal imaging solutions.

Main Features
Unmatched Lightness and Minimal Load
  • Ultra-Miniature Size: 17.3×17.3×24.2 mm (including 9.1 mm lens)
  • Ultra-Lightweight: 13.7±0.5g (including 9.1 mm lens)
  • Ultra-Low Power Consumption: As low as 0.65W
Powered by ApexCore, More Sensitive and Clearer
  • Developed based on the next-generation ApexCore infrared detector, with thermal sensitivity as low as ≤25 mK
  • Enhanced with next-generation image processing algorithms for clearer imaging
Easy Development & Seamless Integration
  • Multiple lens options available to suit various application scenarios
  • Supports multiple image output interfaces: DVP8, LVDS, MIPI, USB 2.0, and BT.656
  • RAW/YUV/Matrix-TEMP data output with serial port control
Product Specifications
Model iTL612PLUS
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤25mK
Image Processing
Digital Frame Rate 25/30Hz/50Hz
Start-up Time ≤6s
Digital Video RAW/YUV/Matrix-TEMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10(Black Hot/White Hot/Pseudo Color)
PC Software
Infrared Module Module Control & Video Display
Electrical
Standard External Interface 30Pin_HRS interface:DF40C-30DP-0.4V(51)
MIPI External Interface 34Pin_Panasonic Connector Interface:AXE634124
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/LVDS/MIPI/USB2.0/BT.656
Supply Voltage 4.2-5.5V
Typical Power Consumption 0.65W
Mechanical
Size (including lens) 17.3×17.3×24.2(9.1mm lens)
17.3×17.3×30.2(13mm lens)
17.3×17.3×38(24mm lens)
17.3×17.3×54(45mm lens)
Weight (including lens) 13.7±0.5g(9.1mm lens)
17.9±0.5g(13mm lens)
27.3±0.5g(24mm lens)
51±0.5g(45mm lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration, 3-axis
Impact Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 9.1/13/24/45mm
Industrial Applications

The iTL612PLUS thermal camera core can be used in the fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references. Get started without guesswork.
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification made easy.
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration.
  • Remote Technical Support: 24/7 support--quick response and timely resolution for critical issues.
  • Warranty: Original parts and strict process adherence to restore optimal performance.
Frequently Asked Questions
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro infrared detectors / thermal camera cores are widely used in many industries such as:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
