LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG617R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 640x512/17μm NETD ≤40mK
Spectral Range 8~14μm Size 44.5x44.5x50.8 (With 19mm Lens)
Type Thermal Camera For Drone Material VOx
High Light

VOx Fpv Thermal Camera


LWIR Fpv Thermal Camera


RoHS Thermal Camera Sensor Module

Leave a Message
Product Description

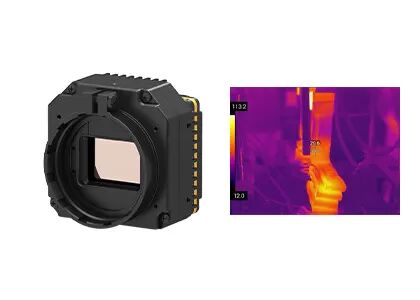

PLUG617R Uncooled Thermal Camera Module


Uncooled LWIR VOx 640x512 / 17μm Drone Thermal Camera Core for Unmanned Aerial Vehicles


Product Description


PLUG617R thermal imaging module integrates the market preferred uncooled VOx LWIR infrared detector with an optional temperature measurement function ranging from -20℃~550℃. The PLUG617R is specially designed for the heavy load commercial unmanned aerial vehicle.


The UAV that equips with the PLUG617R thermal module can work throughout day and night without external light sources. It can penetrate heavy smoke, haze and other adverse conditions, with a visual distance of several hundreds of meters. It can also quickly identify human body in complex environment or in camouflage conditions. This IR UAVs can be used in the complex environment of earthquake, fire, mountain torrent or in other disasters. It can quickly locate the trapped people, identify the potential danger on the damaged road, and greatly improve the rescue efficiency; it can also be used to search for camouflage personnel at night, in forest, fog or other environments with blocked vision, to assist the law enforcement officers in fighting criminals.


UAV equipped with PLUG617R thermal camera can also be used in other areas, such as enforcement and rescue, firefighting application, animal observation etc.


Main Features

- NETD≤40mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability


Product Specifications


Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤40mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time ≤15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS; Support UVC Video Transmission Protocol
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <2W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy Greater of ± 2℃ or 2% (Typical )
SDK Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature
Physical Characteristics
Dimension (mm) 44.5x44.5x50.8 (With 19mm Lens)
Weight 127g±3g (With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificate RoHS2.0/REACH
Optional Lens Fixed Focus Athermal: 19mm


Industrial Applications


The PLUG617R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.


LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability 0

Solution for UAV Payloads


LWIR VOx FPA Thermal Camera Sensor Module Strong Environmental Adaptability 1




1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.


2. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
