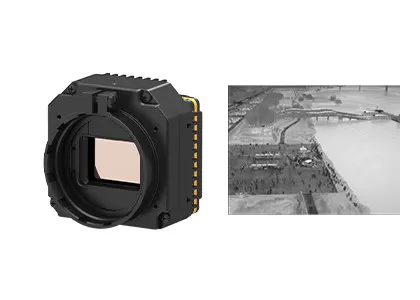

Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography

I'm Online Chat Now

Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography

Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography
Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography

Large Image :  Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512/17μm NETD: ≤40mK
Spectral Range: 8~14μm Size: 44.5x44.5x50.8 (With 19mm Lens)
High Light:

Uav Thermal Imaging Camera Module Uncooled

,

40mK Thermal Imaging Camera Module

PLUG617R Uncooled Thermal Camera Module



Uncooled LWIR VOx 640x512 / 17μm Thermal Imaging Camera Core for Aerial Thermography Using Drone



Product Description



PLUG617R integrates the 640x512 IR thermal imaging sensor by Global Sensor Technology (GST).



The PLUG617R is specially designed for the commercial unmanned aerial vehicle. It can overlook the fire through the thick smoke; quickly locate the trapped people, fire points and potential risks. It helps firefighters to formulate accurate fire-fighting plans. It can also patrol forests and grasslands to find high-temperature or flammable points, and prevent the loss of forest resources caused by fire.



UAV equipped with PLUG617R thermal camera can also be used in other areas, such as enforcement and rescue, firefighting application, animal observation etc.



Main Features


- NETD≤40mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD ≤40mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time ≤15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS; Support UVC Video Transmission Protocol
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8 (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <2W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy Greater of ± 2℃ or 2% (Typical )
SDK Support Windows/Linux SDK; Realize Video Stream Analysis and Conversion from Grayscale to Temperature
Physical Characteristics
Dimension (mm) 44.5x44.5x50.8 (With 19mm Lens)
Weight 127g±3g (With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificate RoHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 19mm



Industrial Applications



The PLUG617R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.



Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography 0



About GST Infrared



Uncooled UAV Thermal Imaging Camera Module For Aerial Thermography 1



FAQs



1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.



2. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
