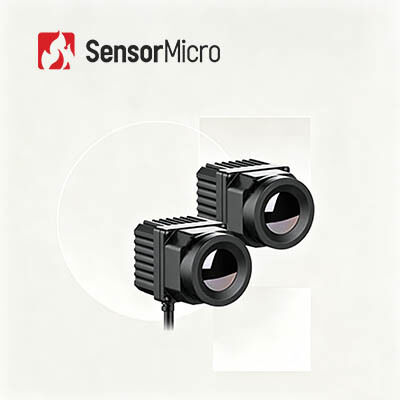

384x288 Resolution 17μm Pixel Pitch LWIR Thermal Camera Core with Intelligent Alarm System

  • 384x288 Resolution 17μm Pixel Pitch LWIR Thermal Camera Core with Intelligent Alarm System
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number N-driver 384S
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 384x288/17μm NETD ＜50mK
Spectral Range 8~14μm Field Of View 37°x28°
Highlight

LWIR Thermal Night Vision Camera

,

Thermal Night Vision Camera 384x288

,

GST Thermal Imaging Core
Leave a Message
Product Description
LWIR Thermal Night Vision Camera 384x288 17μm Thermal Camera Core
Product Overview

384x288 / 17 μm Vehicle Mounted Infrared Thermal Camera with Thermal Imaging, Intelligent Alarm

The N-Driver384S vehicle-mounted infrared module integrates a self-developed 384x288 / 17μm uncooled LWIR detector. This thermal camera module provides drivers with clear road information at any time through thermal imaging, without interference from vehicle headlights or harsh weather conditions. It also includes an intelligent alarm system to provide advance warnings, helping to prevent serious traffic accidents.

We offer various mature and stable infrared thermal imaging solutions to meet diverse customer requirements.

Main Features
  • Wide Observation Field of View
  • Intelligent Alarm System
  • All-weather Application
  • High Speed Data Transmission
  • High Reliability & Stability
Product Specifications
Model N-Driver 384S
IR Detector Performance
Resolution 384x288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <50mk
Image Display Performance
Focal Length 9.7mm
Field of View 37°×28°
Video Output Format FPD-Link Ⅲ
Output Image Frame Rate & Resolution DV 384x288@50Hz
System Features
Start-up Time ≤8s (Room Temperature)
Heater When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off Heating by Itself
Compensation Algorithm Automatic Shutter Compensation
Image Algorithm Automatic Brightness Contrast/Image Enhancement
Communication Interface RS232, Baud rate: 115200bps
Pedestrian / Vehicle Detection Pedestrian & Vehicle Detection (With Algorithm Control Box)
Electrical Features
Supply Voltage DC8V±0.5V
Overall Power Consumption ≤2W@8V Power Supply, Window Heating is off
≤5W@8V Power Supply, Window Heating is on
Operating Range
Observe Range Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m
Detect Range Person ≥80m
Car ≥100m
External Cable Connection
Cable Length 4m
Standard External Interface Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head)
Physical Characteristics
Dimension (mm) 36.0x36.0x52.0 (Without Cable)
Weight 140g±3g (Without Cable)
Environmental Characteristics
Operation Temperature -40°C~ +85°C
Storage Temperature -45°C ~ +90°C
Environmental Test Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013
Reliability Test Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV
Package Sealed Case IP67
Certification
EMC /
Industrial Applications

The N-driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance Systems.

384x288 Resolution 17μm Pixel Pitch LWIR Thermal Camera Core with Intelligent Alarm System 0
Customized Services
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
1. What is infrared thermal imaging?

Infrared thermal imaging is a method that utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal images showing temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

2. What can infrared imaging be used for?
  • Night vision
  • Search & rescue
  • Non-destructive test
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting
3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
