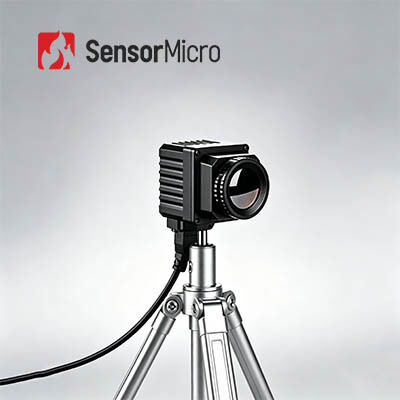

384x288/17μm Vehicle Mounted Thermal Camera with Intelligent Alarm and 37°x28° Field of View
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | N-driver 384S |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Resolution | 384x288/17μm | NETD | ＜50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Field Of View | 37°x28° |
| Highlight | 17uM Vehicle Mounted Thermal Camera,384x288 Vehicle Thermal Camera,Intelligent Alarm Thermal Camera |
||
Product Description
384×288/17μm Vehicle Mounted Thermal Camera with Intelligent Alarm
N-driver384 Infrared Camera Module
384×288 / 17μm Vehicle Mounted Infrared Thermal Camera with Thermal Imaging, Intelligent Alarm
Product Overview
N-Driver384S vehicle-mounted infrared module integrates a self-developed 384×288 / 17μm uncooled LWIR detector by SensorMicro.
By equipping this thermal camera module, drivers obtain clear road information at any time through thermal imaging without interference from vehicles' headlights ahead or harsh weather. It also provides intelligent alarm to give warnings in advance, helping to prevent serious traffic accidents.
We provide customers with various mature and stable infrared thermal imaging solutions.
Main Features
- Wide Observation Field of View
- Intelligent Alarm System
- All-weather Application
- High Speed Data Transmission
- High Reliability & Stability
Product Specifications
| Model | N-Driver 384S |
|---|---|
| IR Detector Performance | |
| Resolution | 384×288 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | <50mk |
| Image Display Performance | |
| Focal Length | 9.7mm |
| Field of View | 37°×28° |
| Video Output Format | FPD-Link Ⅲ |
| Output Image Frame Rate & Resolution | DV 384×288@50Hz |
| System Features | |
| Start-up Time | ≤8s (Room Temperature) |
| Heater | When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself When the Window Temperature is Higher than 7°C±2°C, Turn off Heating by Itself |
| Compensation Algorithm | Automatic Shutter Compensation |
| Image Algorithm | Automatic Brightness Contrast/Image Enhancement |
| Communication Interface | RS232, Baud rate: 115200bps |
| Pedestrian / Vehicle Detection | Pedestrian & Vehicle Detection (With Algorithm Control Box) |
| Electrical Features | |
| Supply Voltage | DC8V±0.5V |
| Overall Power Consumption | ≤2W@8V Power Supply, Window Heating is off ≤5W@8V Power Supply, Window Heating is on |
| Operating Range | |
| Observe Range | Person: 1.8m×0.5m ≥150m Car: 2.3m×2.3m ≥300m |
| Detect Range | Person ≥80m Car ≥100m |
| External Cable Connection | |
| Cable Length | 4m |
| Standard External Interface | Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head) |
| Physical Characteristics | |
| Dimension (mm) | 36.0×36.0×52.0 (Without Cable) |
| Weight | 140g±3g (Without Cable) |
| Environmental Characteristics | |
| Operation Temperature | -40°C~ +85°C |
| Storage Temperature | -45°C ~ +90°C |
| Environmental Test | Salt Spray: ISO16750-4; Harsh Level IV Industrial Solvent: GB/T28046.5-2013 |
| Reliability Test | Vibration: ISO16750-3, Grade A Flame Retardant: GB8410, Grade B Stone Impact: ISO16750-3, Grade A ESD: Contact Discharge ±8KV, Air Discharge ±15KV |
| Package | Sealed Case IP67 |
| Certification | |
| EMC | / |
Industrial Applications
The N-driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance System.
Product Portfolio
Diverse Product Formats: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.
Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to consider is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us because in the entire electromagnetic spectrum, the naked eye can only see "visible light".
2. How does infrared thermal imager work?
The core component of infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature differences of surrounding objects. It collects radiation information from objects and outputs temperature information for imaging based on temperature difference data. The hotter the object, the more infrared radiation it produces. If the intensity is high enough, you can feel it as heat.
