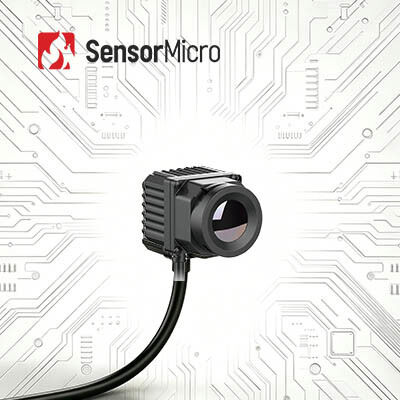

384x288 Resolution 17μm Pixel Pitch Vehicle Mounted Thermal Camera with Intelligent Alarm for Enhanced Night Vision

  • 384x288 Resolution 17μm Pixel Pitch Vehicle Mounted Thermal Camera with Intelligent Alarm for Enhanced Night Vision
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number N-driver 384S
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Resolution 384x288/17μm NETD ＜50mK
Spectral Range 8~14μm Field Of View 37°x28°
Highlight

384x288 Vehicle Mounted Thermal Camera

,

50mk Vehicle Mounted Thermal Camera
Leave a Message
Product Description
384x288 17μm Vehicle Mounted Thermal Camera with Intelligent Alarm
Product Overview
The N-Driver384S vehicle-mounted infrared module integrates a self-developed 384x288 / 17μm uncooled LWIR detector. This thermal camera module provides drivers with clear road information through thermal imaging, unaffected by headlights or harsh weather conditions. The intelligent alarm system offers advanced warnings to help prevent serious traffic accidents.
Main Features
  • Wide Observation Field of View
  • Intelligent Alarm System
  • All-weather Application
  • High Speed Data Transmission
  • High Reliability & Stability
Product Specifications
Model N-Driver 384S
IR Detector Performance
Resolution 384x288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <50mk
Image Display Performance
Focal Length 9.7mm
Field of View 37°×28°
Video Output Format FPD-Link Ⅲ
Output Image Frame Rate & Resolution DV 384x288@50Hz
System Features
Start-up Time ≤8s (Room Temperature)
Heater When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off Heating by Itself
Compensation Algorithm Automatic Shutter Compensation
Image Algorithm Automatic Brightness Contrast/Image Enhancement
Communication Interface RS232, Baud rate: 115200bps
Pedestrian / Vehicle Detection Pedestrian & Vehicle Detection (With Algorithm Control Box)
Electrical Features
Supply Voltage DC8V±0.5V
Overall Power Consumption ≤2W@8V Power Supply, Window Heating is off
≤5W@8V Power Supply, Window Heating is on
Operating Range
Observe Range Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m
Detect Range Person ≥80m
Car ≥100m
External Cable Connection
Cable Length 4m
Standard External Interface Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head)
Physical Characteristics
Dimension (mm) 36.0x36.0x52.0 (Without Cable)
Weight 140g±3g (Without Cable)
Environmental Characteristics
Operation Temperature -40°C~ +85°C
Storage Temperature -45°C ~ +90°C
Environmental Test Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013
Reliability Test Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV
Package Sealed Case IP67
Certification
EMC /
Industrial Applications
The N-driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance System.
384x288 Resolution 17μm Pixel Pitch Vehicle Mounted Thermal Camera with Intelligent Alarm for Enhanced Night Vision 0
Product Benefits
Diverse Product Portfolio
A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.
Rich Product Variety
Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.
Outstanding Performance
Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability--designed to perform under a wide range of environmental challenges.
Easy Integration
Multiple interface options make integration straightforward and enable rapid development across multiple application fields.
Frequently Asked Questions
What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (-273℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
