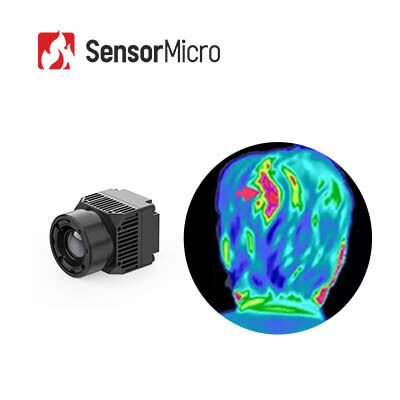

Uncooled 640×512 Resolution Thermal Camera with ±0.5°C Accuracy and 8μm Pixel Pitch for Precision Temperature Measurement
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | RoHS2.0; Reach |
| Model Number | iHA608W |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512/8μm | NETD | ≤30mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Digital Frame Rate | 25Hz |
| Supply Voltage | 5V±0.5 | Typical Power Consumption | 0.6W |
| Highlight | VOx Thermal Camera For Fever Detection,Uncooled VOx Thermal Camera |
||
Product Description
Uncooled 640×512 / 8μm Thermal Camera for Temperature Measurement with Accuracy ±0.5°C Precision
Product Overview

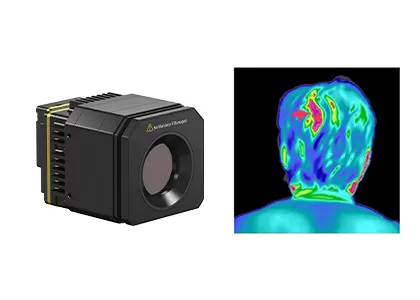

Built with ApexCore high-performance uncooled infrared detector, the iHA608W features industry-leading 640×512 resolution and ultra-fine 8μm pixel pitch, delivering ultra-high-precision thermal imaging and temperature detection. After professional medical algorithm calibration, the module supports non-contact body temperature measurement with accuracy up to ±0.5°C, offering excellent temperature resolution and image restoration capability.
The module has a compact physical size of 21×21×31.5mm and net weight of 25±2g, achieving extreme miniaturization of thermal imaging equipment. It integrates Type-C video output and USB 2.0 high-speed communication interfaces, and provides full-version SDK for Windows, Android and Linux systems to support secondary development and system integration.
Main Features
- Top-Level Hardware Configuration: 640×512 high resolution + 8μm ultra-fine pixel pitch for delicate thermal image presentation
- Professional Precision Calibration: Medical-level temperature calibration technology ensures ±0.5°C ultra-high detection accuracy
- Extreme Miniaturization Technology: Industry-leading lightweight design, breaking size limits of traditional medical thermal modules
- High-Speed Data Transmission: USB 2.0 high-speed communication + Type-C stable video output for real-time data transmission
Product Specifications
| Model | iHA608W |
|---|---|
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 8μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25Hz |
| Start-up Time | ≤6s |
| Digital Video | RAW/YUV/TMP |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Image Display | Medical/Pseudo Color |
| PC Software | |
| Computer Software | Module Control & Video Display |
| Temperature Measurement | |
| Operating Temperature | 10℃~+50℃ |
| Temperature Measurement Range | 32℃~+42℃ |
| Temperature Measurement Accuracy | ≤±0.5℃ (after 2-minute warm-up, ambient 23±3°C, target 32-42°C) |
| Measurement Distance | 0.5m-5 m; supports multi-distance temperature measurement via SDK |
| SDK | Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration |
| Electrical | |
| Standard External Interface | USB(TYPE-C) |
| Communication Interface | USB |
| Digital Video Interface | USB2.0 |
| Supply Voltage | 5V±0.5 |
| Typical Power Consumption | 0.6W |
| Optical Lens | |
| Focus Length | 4mm |
| Type of Lens | Fixed Focus Athermal |
| F/# | 1 |
| FOV(H×V) | 69.2°×55.4° |
| Mechanical | |
| Size (including lens) | 21mm×21mm×31.5mm (including 4mm lens) |
| Weight (including lens) | 25g±2 (including 4mm lens) |
| Environmental Adaptability | |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction, 3 Axis, 6 Direction |
| ESD | 6kV contact discharge; 8kV air discharge |
| Certification | |
| Environmental Certification | ROHS2.0/REACH |
Industrial Applications
The iHA608W thermal camera is widely used in human body temperature measurement and elevated body temperature screening.
Our Strengths
- Diversified Product Portfolio
- Deep Technical Expertise
- Rigorous Reliability Validation Ensures Quality Assurance
- Focused on Innovation and Practical Implementation in Infrared Sensing
- Professional Technical Support and Joint Development Services
Frequently Asked Questions
1. How does uncooled focal plane array microbolometer work?
By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.
2. What's the advantage of uncooled vox microbolometer?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
