Integral Rotary Stirling Cryo Cooler with Miniature Closed Cycle Cooling System

I'm Online Chat Now

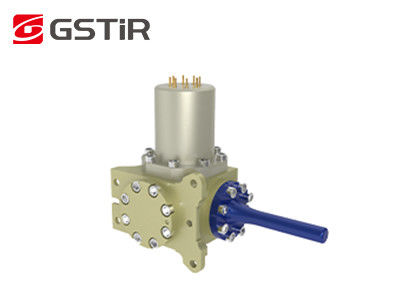

Integral Rotary Stirling Cryo Cooler with Miniature Closed Cycle Cooling System

Integral Rotary Stirling Cryo Cooler with Miniature Closed Cycle Cooling System
Integral Rotary Stirling Cryo Cooler with Miniature Closed Cycle Cooling System

Large Image :  Integral Rotary Stirling Cryo Cooler with Miniature Closed Cycle Cooling System

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS046
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@77K@20℃)>400mW MTTF: >10000h
Stable Power Consumption: <3.2W (130mW@100K@20℃) Working Temperature: -45℃~+85℃
Size: 95.6x81x46mm Weight: <260g
High Light:

Integral Rotary Stirling Cryo Cooler

,

260g Stirling Cryo Cooler

RS046 Detector Dewar Cooler



400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors



Product Description



RS046 is a member of the integral rotary stirling cryocooler series developed by Global Sensor Technology (GST). It provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of cooled infrared detectors.



With compact mechanical structure, and advanced c-rings sealing, RS046 detector dewar cooler (ddc) was specially developed to fit the applications where low input power, volume and weight are the most important parameters.



Global Sensor Technology is a supplier of cooled uncooled infrared detectors and infrared thermal imaging modules. We have more than 10 years of experience about infrared thermal imaging applications and a set of mature solutions available for customers. At the same time, we also have professional after-sales service team to provide you with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- MTTF>10000hrs

- Cooling Power: (@77K@20℃)>400mW

- Cooling Time: <4.5mins(150J@77K@20℃)

- Small Size

- Low Noise

- Low Consumption



Product Specifications



Model RS046
Type Integral Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm) 95.6×81×46
Weight <260g
Cooling Power (@77K@20°C)>400mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 24-32VDC/9-12VDC
Max Power Consumption <12W
Steady Power Consumption <3.2W (130mW@100K@20°C)
Cooling Time <4.5min (150J@77K@20°C)
Cold Finger Dimension Φ6.4mm
Electronics External
Integration Method IDDCA



Industrial Applications



The RS046 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



About GST Infrared



Integral Rotary Stirling Cryo Cooler with Miniature Closed Cycle Cooling System 0



FAQs



1.What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.



2. How do infrared detectors work?

Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.



3.What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
