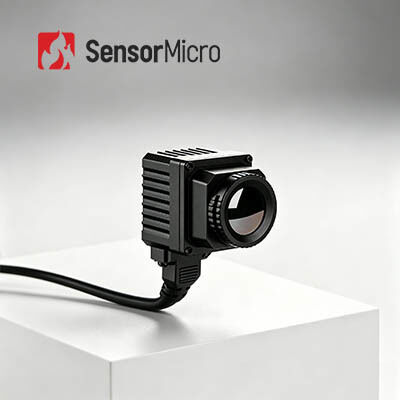

384x288 Resolution Vehicle Mounted Thermal Camera with Intelligent Alarm System and 37°x28° Field of View
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | N-driver 384S |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Resolution | 384x288/17μm | NETD | ＜50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Field Of View | 37°x28° |
| Highlight | Camera Infrared Night Vision 384x288,RoHS Camera Infrared Night Vision |
||
Product Description
Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving
Product Overview
The N-Driver384S vehicle-mounted infrared thermal camera is specifically engineered for automotive applications, featuring a self-developed 384×288/17μm VOx infrared detector. This advanced thermal imaging solution enhances driver visibility and safety through intelligent alarm systems and superior night vision capabilities.
Key Features
- Unaffected by lighting conditions or harsh weather
- Significantly improves visual range and detection capabilities
- Enhanced driver safety through intelligent monitoring
- Easy integration and installation
- Intelligent alarm system for pedestrian and vehicle detection
- All-night vision and anti-glare functionality
Technical Specifications
| Model | N-Driver 384S |
|---|---|
| IR Detector Performance | |
| Resolution | 384×288 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | <50mk |
| Image Display Performance | |
| Focal Length | 9.7mm |
| Field of View | 37°×28° |
| Video Output Format | FPD-Link Ⅲ |
| Output Image Frame Rate & Resolution | DV 384×288@50Hz |
| System Features | |
| Start-up Time | ≤8s (Room Temperature) |
| Heater | Automatic heating activation when window temperature is below 2°C±2°C; automatic deactivation when above 7°C±2°C |
| Compensation Algorithm | Automatic Shutter Compensation |
| Image Algorithm | Automatic Brightness Contrast/Image Enhancement |
| Communication Interface | RS232, Baud rate: 115200bps |
| Pedestrian / Vehicle Detection | Pedestrian & Vehicle Detection (With Algorithm Control Box) |
| Electrical Features | |
| Supply Voltage | DC8V±0.5V |
| Overall Power Consumption | ≤2W@8V Power Supply, Window Heating off ≤5W@8V Power Supply, Window Heating on |
| Operating Range | |
| Observe Range | Person: 1.8m×0.5m ≥150m Car: 2.3m×2.3m ≥300m |
| Detect Range | Person ≥80m Car ≥100m |
| External Cable Connection | |
| Cable Length | 4m |
| Standard External Interface | Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head) |
| Physical Characteristics | |
| Dimension (mm) | 36.0×36.0×52.0 (Without Cable) |
| Weight | 140g±3g (Without Cable) |
| Environmental Characteristics | |
| Operation Temperature | -40°C~ +85°C |
| Storage Temperature | -45°C ~ +90°C |
| Environmental Test | Salt Spray: ISO16750-4; Harsh Level IV Industrial Solvent: GB/T28046.5-2013 |
| Reliability Test | Vibration: ISO16750-3, Grade A Flame Retardant: GB8410, Grade B Stone Impact: ISO16750-3, Grade A ESD: Contact Discharge ±8KV, Air Discharge ±15KV |
| Package | Sealed Case IP67 |
| Certification | |
| EMC | / |
Industrial Applications
The N-Driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance Systems (ADAS) to enhance vehicle safety and driver awareness.
Standardized Service
- Complete Documentation: Product manuals, setup guides, and selection references for seamless implementation
- Development & Testing Assistance: Sample integrated testing, performance evaluation, and parameter verification services
- Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
- Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
- Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
How does uncooled focal plane array microbolometer work?
Using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, increasing the temperature of the sensitive material. This causes specific physical parameters of the sensitive material to change accordingly, which are then converted into electrical signals or visible light signals through designed conversion mechanisms to enable object detection.
What's the advantage of uncooled VOx microbolometer?
Uncooled infrared focal plane detectors do not require an Integrated Dewar Cooler Assembly (IDCA) device and can operate at room temperature. They offer significant advantages including fast startup, low power consumption, small size, light weight, long lifespan, and low cost. While their sensitivity may not match cooled infrared detectors, years of development have made their cost-performance ratio significantly better than cooled detectors, offering broader application prospects.
