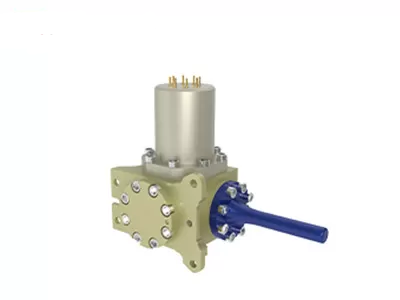

Small Integrated Dewar Cooler Assembly RS079 750mW Low Noise

I'm Online Chat Now

Small Integrated Dewar Cooler Assembly RS079 750mW Low Noise

Small Integrated Dewar Cooler Assembly RS079 750mW Low Noise
Small Integrated Dewar Cooler Assembly RS079 750mW Low Noise

Large Image :  Small Integrated Dewar Cooler Assembly RS079 750mW Low Noise

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS079
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@77K@20℃)>750mW Stable Power Consumption: <12W (550mW@77K@20℃)
Working Temperature: -45℃~+85℃ Size: 120x59x78mm
High Light:

Small Integrated Dewar Cooler Assembly

,

Integrated Dewar Cooler Assembly RS079

RS079 by GST Infrared

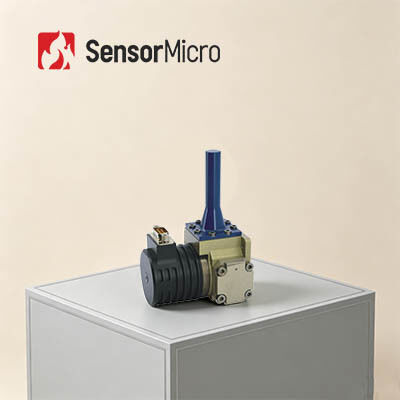

RS079 750mW Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors



Product Description



RS079 is one of the integral rotary stirling cryocooler series developed by Global Sensor Technology (GST). It provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of stirling cooled detectors.



Its motor windings are separated from the working gas to prevent contamination. High wear-resisting coating and clean room assembly are applied to prolong the lifetime and high reliability. For compactness, the electronic drive is built-in. An onboard temperature sensor offers stand-by, remote shutdown and over-temperature protection options. With high performance, RS079 dewar cooler assembly is designed to meet the demand for high cooling power of the large FPA formats.



Due to its lightweight, miniaturization and low power consumption, it is easier for the cryo cooler to be integrated into various terminal products, which can greatly reduce the cost and meet different customized needs of customers.



Main Features



- MTTF>10000hrs

- Cooling Power: (@77K@20℃)>750mW

- Cooling Time: <5mins (500J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics



Product Specifications



Model RS079
Type Integral Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm) 120×59×78
Weight <600g
Cooling Power (@77K@20°C) >750mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 18-28VDC
Max Power Consumption <18W
Steady Power Consumption <12W (550mW@77K@20°C)
Cooling Time <5mins (500J@77K@20°C)
Cold Finger Dimension Φ9.4mm
Electronics Internal
Integration Method IDDCA



Industrial Applications



The RS079 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Our Advantages



Small Integrated Dewar Cooler Assembly RS079 750mW Low Noise 0





FAQs



1.What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
