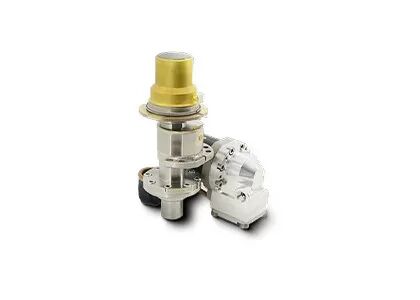

Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration

I'm Online Chat Now

Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration

Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration
Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration

Large Image :  Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C330M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Material: MCT Resolution: 320x256/30μm
NETD: ≤9mK (F2); ≤15mK (F4) Spectral Range: 3.7~4.8μm MW
Cooling Time: ≤6min (RS058); ≤5min30s (RS046H) Size: 149x58.5x71mm
High Light:

Professional MCT Ir Detector

,

MCT Ir Detector Cooled

,

MCT Ir Detector 320x256

About C330M Cooled Infrared Detector



The Most Professional, Classical 320x256 / 30μm MWIR MCT Cooled Infrared Detector



Product Description



C330M MWIR MCT cooled infrared detector comes with 320X256 format at the pixel size of 30μm. It is interchangeable with most mainstream MARS like products when configured with RS058 integrated stirling cooler. It can be used for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.



The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C330M RS058 easily for further internal configuration.



 Main Features



- Resolution: 320x256

- Pixel Pitch: 30μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C330M MW
Material MCT
Resolution 320x256
Pixel Pitch 30μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Number of Output 1 or 4; Up to 6.6Mpixel/s per Output
NETD F2: ≤9mK
F4: ≤15mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046H
Steady Power Consumption ≤6W @ RS058
≤6W @ RS046H
Max Power Consumption ≤12W @ RS058
≤11W @ RS046H
Power Supply RS058: 24V DC
RS046H: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046H
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration 0



About Global Sensor Technology


Cooled FPA MCT IR Detector 320x256 30μm for Fast Integration 1


FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
