320x256 30μm Dual Color Focal Plane Array Detector

I'm Online Chat Now

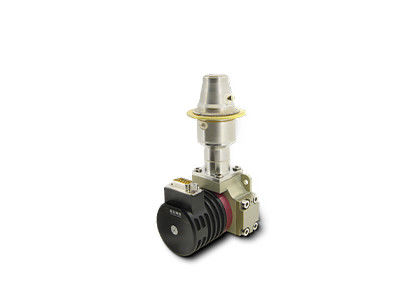

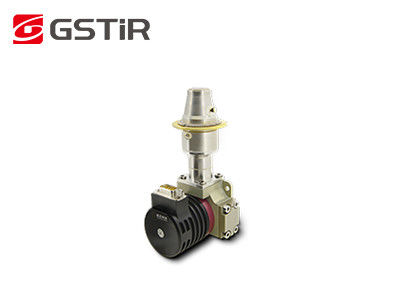

320x256 30μm Dual Color Focal Plane Array Detector

320x256 30μm Dual Color Focal Plane Array Detector
320x256 30μm Dual Color Focal Plane Array Detector

Large Image :  320x256 30μm Dual Color Focal Plane Array Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C330S MW/LW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256/30μm Spectral Range: 3.7~4.8μm (MW); 7.7~9.5μm (LW)
Cooling Time: <8min NETD: ≤20mK (MW); ≤25mK (LW)
Size: 142x58.5x71mm Weight: ≤600g
High Light:

320x256 Focal Plane Array Detector

,

600g Focal Plane Array Detector

C330S Dual Band Cooled Infrared Detector



320x256 / 30µm Dual Color FPA Cooled Infrared Detector Integrated Dewar Cooler Assembly



Product Description


C330S MWIR/LWIR dual-color integrated dewar cooler assembly is one of T2SL cooled infrared detectors developed by Global Sensor Technology (GST). It combines the advantages of both medium and long wave detection in one single 320x256@30µm infrared detector package for high performance imaging in the 3.7~4.8μm Medium Wave Infrared (MWIR) and 7.7~9.5μm Long Wave Infrared (LWIR) wavebands, which can greatly lower the false warning rate.


Main Features


- Resolution: 320x256
- Pixel Pitch: 30µm
- MW/LW Dual-band Imaging
- High Sensitivity
- Excellent Non-uniformity



Product Specifications



Model C330S MWIR/LWIR
Material T2SL
Resolution 320x256
Pixel Pitch 30μm
Spectral Range MW: 3.7μm~4.8μm
LW: 7.7μm~9.5μm
Working Mode Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity MW: 8.9Me-/3Me-
LW: 21Me-
Dynamic Range MW:≥76dB
LW:≥80dB
Number of Output 2 or 8; Up to 12 Mpixel/s per Output
NETD MW≤20mK
LW≤25mK
Effective Pixel Rate ≥99.0%
Response Non-uniformity ≤8%
Cryocooler Type RS058
Steady Power Consumption <9W
Max Power Consumption <18W
Power Supply 24V DC
Cooling Time <8min
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330S MW/LW is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

320x256 30μm Dual Color Focal Plane Array Detector 0


Our Advantages


320x256 30μm Dual Color Focal Plane Array Detector 1


FAQs



1.What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.



2.What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
