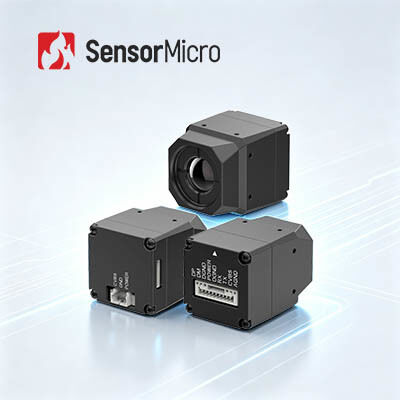

384×288 Resolution 12μm Pixel Size Ultra-Compact Uncooled Thermal Camera Module for Security Surveillance

  • 384×288 Resolution 12μm Pixel Size Ultra-Compact Uncooled Thermal Camera Module for Security Surveillance
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number MICO412
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 384x288 / 12μm NETD ≤30mK/F1.0/25℃
Camera Lens Multiple Available Frame Rate 25Hz/30Hz/50Hz
Start-up Time ≤6s Spectral Range 8~14μm LW
Highlight

Uncooled Thermal Surveillance Camera Module

,

Thermal Surveillance Camera Module LWIR

,

Thermal Camera Module 640x512
Leave a Message
Product Description
Uncooled Thermal Surveillance Camera Module LWIR 384×288 / 12μm
LWIR 384×288 / 12μm Uncooled Thermal Camera Module for Security and Monitoring

The MICO412 ultra-compact infrared camera core features a 384×288 resolution infrared detector, multiple optical lens options, image processing board, and robust structural frame. It transmits analog or digital video to backend platforms for integration. With its larger array, the MICO412 meets various customer needs.

This LWIR infrared thermal camera core is specifically designed for security and surveillance applications. It senses an object's heat radiation and captures images 24/7, regardless of environmental factors such as darkness, low light, strong backlight, etc.

Main Features
  • Low-cost and Energy-efficient Solution
    • Equipped with self-developed 384×288/12μm wafer-level infrared detector, offering clear cost advantage
    • Integrated with dedicated ASIC chip for high energy efficiency
  • Optimized SWaP
    • Ultra-compact size: only 22.2×22.2×27.2mm (excluding lens)
    • Lightweight: just 30.3±2g
    • Low power consumption: 680mW
  • Easy Development & Quick Integration
    • Provides native analog or digital video output, supporting CVBS/USB/MIPI standards—no additional development required
    • Easy mounting with minimal structural design effort
Product Specifications
Model MICO412
IR Detector Sensitive Material: VOx
Resolution: 384×288
Pixel Size: 12µm
NETD: ≤30mK/F1.0/25℃
Spectral Response: 8~14μm
Optical Lens Focus/F#: 4.8/F1.0 | 9.1mm/F1.0 | 13mm/F1.0
FOV: 51°(H)×39°(V) | 28.4°(H)×21.5°(V) | 20°(H)×15°(V)
Detection Range (8 pixels) 99m (5'11" tall person)
360m (4m×3m vehicle)
Type Fixed Focus Athermal
First lens sealing/coating IP67
Image Processing Analog Video: PAL(default) / NTSC
Digital Video: USB/MIPI
Frame Rate: 25Hz/30Hz/50Hz
Start-up Time: ≤6s
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Pseudo Color 11 types - customizable
Electrical Interface Standard External Interface: 3PIN interface (A1251-WV-S-3P) | 9PIN interface(A1251-WV-S-9P) | 26PIN interface(DF56C-26S-0.3V-51)
Video Interface: CVBS | USB | MIPI
Power Supply Supply Voltage: DC: 5V~24V
Steady Power Consumption: ≤680mW@5V, 23±3℃
Mechanical Dimension: 22.2mm×22.2mm×27.2mm (L×W×H)
Weight: 30.3±3g
Environmental Adaptability Operating Temperature: -40℃~+70℃
Storage Temperature: -45℃～+85℃
Humidity: 5%~95%, non-condensing
Vibration: Random Vibration, 5.35grms, 3-axis
Shock: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Certification RoHS2.0/Reach
Industrial Applications

The MICO412 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

Our Way of Service
Pre-Sales Requirement Analysis
Scenario Assessment
Product Selection
Customized Solutions
Deployment Rapid Delivery
System Integration & Testing
Technical Training
Application Guidance
After-Sales Remote Diagnostics
Warranty Service
Firmware Upgrades
Technical Maintenance
Frequently Asked Questions
1. How to choose proper infrared detector resolution?

It depends on the actual needs and applications of your products, and price is also a factor that needs to be considered. If image quality requirements are not high, you can choose infrared detectors with lower resolution, such as 120×90, 256×192, or 400×300. If you need very clear images for special purposes, such as remote monitoring, you can choose high-resolution infrared detectors of 1280×1024.

2. How to select right pseudo color for thermal imaging?
  • Gray white is more suitable for targets with small temperature differences
  • Red and blue is more suitable for scenes where problem points need to be found
  • Iron red is the standard color palette for the power industry
Note: No matter which palette you choose, the thermal temperature reading will not change at all.
3. How to choose a suitable infrared thermal camera lens?
  • Standard lens: Can meet normal targets with appropriate distance
  • Telephoto lens: Suitable for relatively small targets that need to be viewed from long distance
  • Wide angle lens: Better for seeing more detail of objects at close distance
  • Macro lens: For seeing very tiny targets at close distance, such as chip circuits
