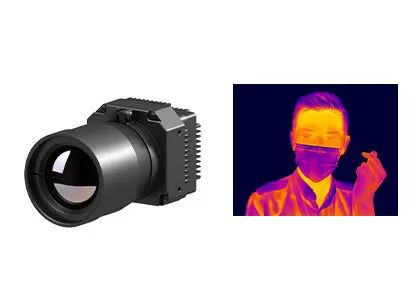

MegaPixel Plug Series Uncooled Infrared Camera Core Used In Complex Environments

  • MegaPixel Plug Series Uncooled Infrared Camera Core Used In Complex Environments
Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 1280x1024/12μm NETD ＜50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

MegaPixel Plug Uncooled Infrared Camera

,

Uncooled Infrared Camera Core
Leave a Message
Product Description
PLUG1212 Infrared Camera Module



MegaPixel Plug Series 1280x1024 / 12μm Uncooled Infrared Camera Core Used in Complex Environments



Product Description



PLUG1212 is a high definition uncooled thermal imaging module with 1280x1024 resolution and 12µm pixel size LWIR VOx Microbolometer infrared detector.



Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.



Main Features



- Size: 56x56x40.2

- Weight: ≤220g

- Wavelength: 8~14µm (LWIR)

- Frame Rate: 25Hz



Product Specifications



Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLU1212 infrared imaging module is widely used in Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



MegaPixel Plug Series Uncooled Infrared Camera Core Used In Complex Environments 0

Our Advantages



MegaPixel Plug Series Uncooled Infrared Camera Core Used In Complex Environments 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
