MWIR Cryogenically Cooled Infrared Detector 15μM 640x512 For Multi Sensor Payload
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512/12μm | NETD | ≤17mK (F2); ≤18mK (F4) |
|---|---|---|---|
| Spectral Range8~14μm | 3.7~4.8μm MW | Operation Temperature | -45℃~+71℃ |
| High Light | MWIR Cryogenically Cooled Infrared Detector,640x512 MWIR Cooled Infrared Detector,Cooled Infrared Detectors 640x512 |
||
Product Description

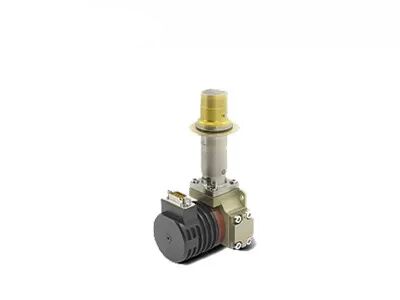

15μM 640x512 Cooled MWIR Infrared Detector For Remote Monitoring System
Product Description
Being one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). C615M is a 640×512 resolution, 15μm pixel size, MCT technology based mid wave infrared detector that could present clear images. Equipped with industry standard interfaces and RS058/RS046/LS734 cryocoolers, C615M is designed to meet various customer requirements of light weight, low power consumption, long life and high reliability. It is with the most popular 640x512/15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.
It can be widely used in many high end applications, such as Handheld Reconnaissance System, Remote Monitoring System, Search & Tracking System, Enhanced Flight Vision System, Electro-Optical Payload etc.
Main Features
Sharp & Clear Imaging
• Good uniformity, effective pixel rate＞99.5%
• High thermal sensitivity
Guaranteed Continuous Supply
• Interchangeable standard interface
• Mass production, good consistency
Designed for Specific Applications
• Wavelength can be customized
• F number can be customized
• Mounting surface can be customized
• Multiple cryocooler available
Product Specifications
| Model | C615M MW |
| Material | MCT |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 9.1Me-/6.5Me-(ITR) 7.8Me-/5.2Me-(IWR) |
| Dynamic Range | ≥75dB |
| Number of Output | 4; Up to 10Mpixel/s per Output |
| NETD | F2: ≤17mK F4: ≤18mK |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058/RS046 |
| Steady Power Consumption | ≤6W@RS058 ≤5W@RS046 |
| Max Power Consumption | ≤12W @ RS058 ≤11W @ RS046 |
| Power Supply | RS058: 24V DC RS046: 32V DC |
| Cooling Time | ≤6min @ RS058 ≤5min30s @ RS046 |
| Weight | ≤600g @ RS058 ≤350g @ RS046 |
| Dimension (mm) | RS046: 122x46.3x82 RS058: 147x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Our Product Line
About Global Sensor Technology
Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.
FAQs
1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2．Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
Recommended Products
