Resolution 640x512 Pixel Pitch 15μm
Stable Power Consumption ＜8W High Sensitivity NETD≤25mK
Spectral Range 3.7~4.8μm (MW); 7.7~9.5 (LW) Size 142x58.5x71mm
High Light

Integrated LWIR Infrared Detector

,

640x512 Cooled LWIR Detector

,

Cooled LWIR Infrared Detector 15uM
Leave a Message
Product Description

Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

C615S by GST Infrared

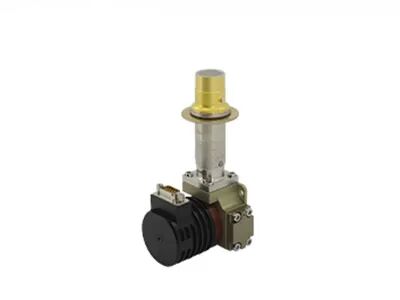

T2SL 640x512 / 15µm LWIR Cooled Infrared Detector with Integrated Dewar Cooler Assembly



Product Description



C615S LWIR integrated dewar cooler assembly is one of T2SL cooled infrared detectors developed by Global Sensor Technology (GST). It is a 640x512 / 15µm Type II Superlattice (T2SL), Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.



With 640x512 resolution and reduced pixel pitch to 15µm, the C615S LWIR integrated dewar cooler assembly provides clear image and superior performance. It features in most advanced technology, high quantum efficiency, high frame rate, high sensitivity, low noise, best non-uniformity etc.



As a LWIR detector, it presents high performance under the conditions of sand or dust climate and will not be affected by sunlight flicker or any high temperature flame.



Main Features



- Resolution: 640x512

- Pixel Pitch: 15µm

- High Sensitivity

- Good Imaging Effect

- Low Noise

- Stable Performance

- Excellent Non-uniformity



Product Specifications



Model C615S LWIR
Material T2SL
Resolution 640x512
Pixel Pitch 15um
Spectral Range 7.7μm～9.5μm LW
Working Mode Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming
Charge Capacity ITR: 12.22Me-/6.67Me-
Interlace Binning: 24.44Me-/13.33Me-
Dynamic Range ITR: ≥76dB
Interlace Binning: ≥77dB
Output Channel 4; Up to 22.5 Mpixel/s per Output
NETD ≤30mK(F2 ITR)
≤25mK(F2 Interlace Binning)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cooler Type RS058
Steady Power Consumption <8W
Max Power Consumption <17W
Power Supply 24V DC
Cooling Time <5min30s
Weight ≤600g
Dimension (mm) 148x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615S LWIR cooled IR detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Cooled LWIR Infrared Detector Integrated Into EO-IR Systems 640x512 15μM 0


Honors & Certificates


Cooled LWIR Infrared Detector Integrated Into EO-IR Systems 640x512 15μM 1


FAQs



1. Advantages of Optical Gas Imaging

Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function

2．Working Principle of Optical Gas Imaging

Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.

After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.

The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
