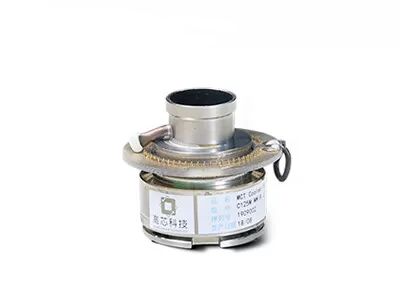

FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm

  • FPA MCT Cooled Infrared Detector Mid Wave 128x128 / 25μm
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C125M MWIR
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 128x128 NETD ＜20mK
Spectral Range 3.7~4.8μm MW Pixel Size 25μm
Highlight

FPA Cooled Infrared Detector

,

Mid Wave Cooled Infrared Detector

,

25μm Cooled Infrared Detector
Leave a Message
Product Description

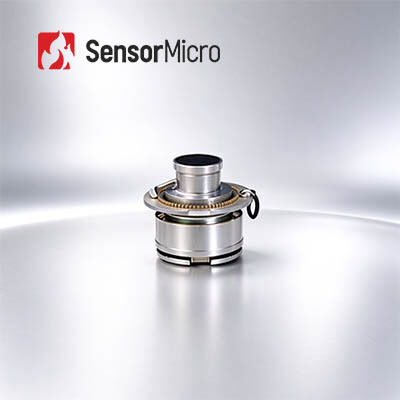

C125M MWIR Cooled Infrared Detector


Mid Wave FPA 128x128 / 25μm MCT Cooled Infrared Detector


Product Description


The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.


The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.


 Main Features


• Resolution: 128x128
• Pixel Size: 25μm
• High Sensitivity
- Compact Design
- Lightweight

• Throttling cool down, fast startup
• Small size, light weight, compact structure
• No vibration
• No electromagnetic interference


Product Specifications


Model C125M MWIR
Sensitive Material HgCdTe/MCT
Resolution 128×128
Pixel Size 25μm
Spectral Range 3.7μm±0.2μm～4.8μm±0.2μm
Working Mode Snapshot; Integration Mode; Anti-blooming
Charge Capacity 24Me-/8Me-
Dynamic Range ≥80dB
Number of Output Single; Up to 6.5MHz
Cryocooler JF428 JF618
Typical NETD 10mK (F1.5) 10mK (F2)
Effective Pixel Rate ≥99.5% ≥99.5%
Response Non-uniformity ≤5% ≤5%
Cooling Time (20℃) ≤5s (50MPa, Ar, 20℃) ≤20s (50MPa, Ar, 20℃)
Maximum Size (mm) Φ35×48.5 Φ35×42.5
Weight ≤100g ≤90g
Operating Temperature -45℃～+71℃ -45℃～+71℃


Customized Service



Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements

On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training

Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions


FAQs


1. What is a cryocooler used for?

Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.


2. What are the main factors to measure the quality of Cryocooler?

Long battery life and reliable operation are main factors to measure the quality of a cryocooler. SensorMicro cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.


3. What is MTTF?

MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
