1280x1024 12μm 18mK HD MWIR MCT Cooled Infrared Detector for Long-Range Thermal Imaging

Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C1212M
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Type MWIR Cooled IR Detector Material MCT
NETD 18mK (F2/F4) Max. Frame Rate 100Hz
Resolution 1280x1024/12μm Spectral Range 3.7~4.8μm MW
Highlight

Cooled Infrared Detector 1280x1024

,

HD Cooled Infrared Detector 12um

,

HD MWIR Cooled IR Detector

Leave a Message
Product Description

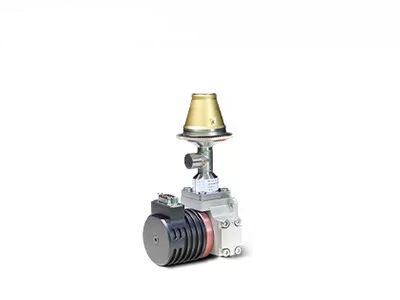

HD MWIR MCT Cooled Infrared Detector — 1280×1024, 12 μm

Featuring a 1280×1024 megapixel focal plane array with a widely adopted 12 μm pixel pitch, the C1212M offers four times the pixel count of traditional 640×512/15 μm detectors over the same target area, resulting in a wider field of view and richer target detail. When paired with shorter focal length optics, it achieves the same detection range, making it an ideal choice for long-range detection and detailed image recognition.
The C1212M MWIR HgCdTe infrared detector is an ideal choice for thermal imaging applications that require superior long-range performance and detailed image recognition in a low size, weight, and power package.

Main Features
Megapixel Resolution, Sensitive Detection
  • 1280×1024 megapixel resolution for a wide field of view
  • Mainstream pixel size that delivers high spatial resolution and long detection range
Sharp Image Quality
  • Excellent image uniformity with ≥99.5% effective pixel rate
  • High sensitivity for precise target detection
High Versatility, Reliable Supply
  • Customizable F-number
  • Consistent quality in mass production
Product Specifications
ModelC1212M
Sensitive MaterialMCT
Resolution1280×1024
Pixel Size12 μm
Spectral Response3.7 μm ± 0.2 μm ~ 4.8 μm ± 0.2 μm
Working ModeSnapshot; ITR/IWR Integration Modes; Windows Mode; Anti-blooming
Charge Capacity6.75 Me⁻ / 4.8 Me⁻ (ITR)
5.25 Me⁻ / 3.3 Me⁻ (IWR)
Dynamic RangeITR Mode ≥ 80 dB
IWR Mode ≥ 76 dB
Output Channel4 or 8 channels; up to 20 MHz per output
Max. Frame Rate100 Hz
Typical NETD18 mK (F2/F4)
Effective Pixel Rate≥ 99.5%
Response Non-uniformity≤ 8%
Configurable CryocoolerRS058F | LS734
Cryocooler TypeRotary Stirling Cryocooler | Linear Stirling Cryocooler
Steady Power Consumption (23 ℃)≤ 7 W | ≤ 10 W
Max. Power Consumption (71 ℃)≤ 17 W | ≤ 45 W
Power Supply24 V DC | 24 V DC
Cooling Time (23 ℃)≤ 6 min | ≤ 4 min
Maximum Size (mm)149 × 58.5 × 71 | Compressor Φ46 × 122
Dewar Φ55 × 119
Weight (g)≤ 600 | ≤ 1200
Operating Temperature-45 ℃ ~ +71 ℃
Industrial Applications

The C1212M MWIR cryogenically cooled infrared detector is widely used in many areas such as NDT, environmental monitoring, long-range surveillance, scientific research, and more.

Company Profile

SensorMicro was founded with a simple but powerful belief: innovation should serve real-world needs.
SensorMicro exists to empower people and systems to see beyond the surface — into the patterns, the problems, and the possibilities that lie beneath.
By turning invisible heat into visible truth, we help industries make smarter decisions, protect what matters most, and navigate complexity with clarity.
Heeding to our insistence on being self-made and customer-first has become a sure recipe for SensorMicro's momentum. As our business spans much of the globe, we've charged ahead on all fronts — from security, firefighting, industrial inspection, medical care, and machine vision, to environmental monitoring and key aspects of carbon neutrality — helping partners unlock the full potential of intelligent infrared sensing, and connecting the dots of life.
We are more than an infrared technology company. We are a community of people committed to building a sustainable, ethical, and human-centered future. Every pixel of innovation we create is a promise — a promise to protect, to empower, and to serve.

Our Service
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements.
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training.
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions.
FAQs
1. What is a cryocooler used for?

Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.

2. What are the main factors to measure the quality of a cryocooler?

Long battery life and reliable operation are the main factors to measure the quality of a cryocooler. SensorMicro cryocoolers have a wide operating temperature range and excellent reliability. Their MTTF (Mean Time to Failure) has reached 10,000 hours, which meets 24/7 boot operation requirements.

3. What is MTTF?

MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long, on average, a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
