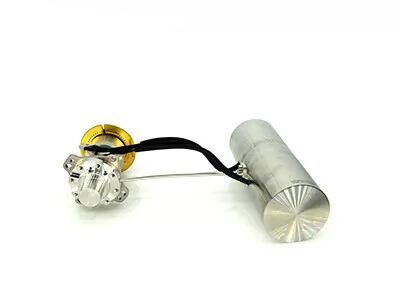

MWIR Infrared Detector Cooled 15μM 640x512 For Flight Vision Enhancement System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512/12μm | NETD | ≤17mK (F2); ≤18mK (F4) |
|---|---|---|---|
| Spectral Range8~14μm | 3.7~4.8μm MW | Operation Temperature | -45℃~+71℃ |
| High Light | Infrared Detector Cooled 15uM,MWIR Infrared Detector Cooled,Flight MWIR Cooled Infrared Detectors |
||
Product Description
15μM 640x512 MWIR Infrared Detector Cooled For Remote Monitoring System
Product Description
C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512/15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.
The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.
Main Features
- Resolution: 640x512
- Pixel Size: 15μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption
Product Specifications
| Model | C615M MW |
| Material | MCT |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 9.1Me-/6.5Me-(ITR) 7.8Me-/5.2Me-(IWR) |
| Dynamic Range | ≥75dB |
| Number of Output | 4; Up to 10Mpixel/s per Output |
| NETD | F2: ≤17mK F4: ≤18mK |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058/RS046 |
| Steady Power Consumption | ≤6W@RS058 ≤5W@RS046 |
| Max Power Consumption | ≤12W @ RS058 ≤11W @ RS046 |
| Power Supply | RS058: 24V DC RS046: 32V DC |
| Cooling Time | ≤6min @ RS058 ≤5min30s @ RS046 |
| Weight | ≤600g @ RS058 ≤350g @ RS046 |
| Dimension (mm) | RS046: 122x46.3x82 RS058: 147x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Cooled Uncooled Infrared Detectors
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
