Drone Infrared Camera Module For Electricity Power Inspection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512 / 12μm | Typical NETD | ≤40mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Size | 21x22.3x15.6 (With 9.1mm Lens) |
| Temperature Range | -20℃~+550℃ (Customizable) | Temperature Accuracy | ±3℃ Or ±3% |
| High Light | 12um Drone Infrared Camera Module,Inspection Drone Infrared Camera Module |
||
Product Description

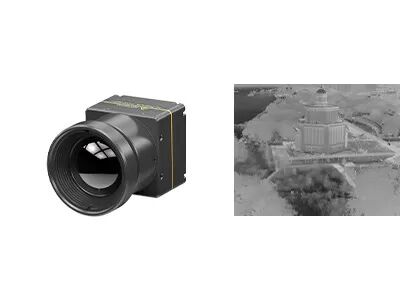

COIN612R Drone Thermal Camera
Drone Infrared Camera Module For Electricity Power Inspection
Product Description
COIN612R is a radiometric thermal camera for drones and can be widely used in the area of industrial inspections, technical diagnostics, predictive maintenance etc. It is a uncooled LWIR infrared camera with spectral range from 8 to 14μm.
The COIN612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
It is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Main Features
- Mini Size: 21x22.3x15.6 (With 9.1mm Lens)
- Light Weight
- Typical NETD≤40mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration
Product Specifications
| Model | COIN612/R |
| IR Detector Performance | |
| Sensitive Material | Vanadium Oxide |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8μm ~14μm |
| Typical NETD | ≤40mK |
| Image Processing | |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | 5s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Reduction (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 (YUV Output) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical Specifications | |
| Standard External Interface | 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male) |
| USB Expansion Board | Type-C |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | CMOS8/CMOS16/LVDS/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.9W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃ (Support Expansion & Customization) |
| Temperature Measurement Accuracy | Greater of ±3℃ or ±3% |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
| SDK | Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 25.4×25.4×27.4 (With 9.1mm Lens) 25.4×25.4×39.5 (With 13mm Lens) 25.4×25.4×38.3 (With 19mm Lens) |
| Weight | 27g±2g (With 9.1mm Lens) 40g±2g (With 13mm Lens) 41g±2g (With 19mm Lens) |
| Environmental Adaptability | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Certificate | ROHS2.0/REACH |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 9.1mm/13mm/19mm |
| Protection Level | IP67 Rating (Front Surface) |
Industrial Applications
The COIN612R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue, forest fire prevention, urban safety etc.
Our Advantages
FAQs
1.What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.
2. How many pseudo color can GST thermal imaging module offer?
- White Hot
- Lava
- Ironbow
- Hot Iron
- Medical
- Arctic
- Rainbow1
- Rainbow2
- Red Hot
- White Hot
