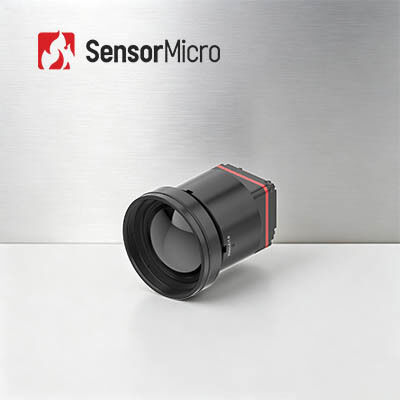

SWaP-C LWIR 1280x1024 Resolution Thermal Camera Module with 8μm Pixel Pitch and ≤30mK NETD for Portable Devices

  • SWaP-C LWIR 1280x1024 Resolution Thermal Camera Module with 8μm Pixel Pitch and ≤30mK NETD for Portable Devices
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iTL1208
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024 Power Consumption 1W
Spectral Range 8~14μm Pixel Pitch 8μm
Typical NETD ≤30mK Frame Rate 25/30Hz
Highlight

SWaP-C LWIR Thermal Camera Module

,

Drones LWIR Thermal Camera Module

,

Drones Thermal Camera Core 12uM
Leave a Message
Product Description
SWaP-C LWIR 1280x1024/8μm Thermal Camera Module for Portable Devices
Product Overview

The iTL1208 thermal imaging module is a next-generation uncooled megapixel infrared camera core engineered for low-SWaP mobile system deployment, combining miniaturized hardware with high-precision thermal detection capabilities.

This infrared camera module delivers premium imaging performance with 8μm small pixel pitch, 1280×1024 megapixel resolution, and ≤30mK typical NETD for ultra-sensitive thermal detection.

Ideal for firefighting, industrial diagnostics, outdoor surveillance, and portable mobile thermal devices.

Main Features
  • Extreme Lightweight Design - Compact size of 22.6×22.6×34.5mm and weight of 35.7g (including 12mm lens) with among the highest levels of integration in its class
  • High Sensitivity, Precise Detection - 8μm ultra-small pixel size with 1280×1024 resolution delivering fine detail and clear images, with typical NETD ≤ 30mK for reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration - Multiple optical lens options, supports MIPI CSI image output interface, RAW and YUV image data output with control via serial port/I2C
Product Specifications
Model iTL1208
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 25/30Hz
Start-up Time ≤6s
Digital Video RAW/YUV
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software Module Control & Video Display
Electrical
Standard External Interface 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface TTL-232/I2C
Digital Video Interface MIPI-CSI
Supply Voltage 4.5-5.5V
Typical Power Consumption 1W
Mechanical
Size (including lens) With 5mm lens: 22.6mm×22.6mm×50mm (lens outer diameter Φ37mm)
With 10mm lens: 22.6mm×22.6mm×45.3mm (lens outer diameter Φ33mm)
With 12mm lens: 22.6mm×22.6mm×34.5mm (lens outer diameter Φ26.6mm)
With 17mm lens: 22.6mm×22.6mm×35.4mm (lens outer diameter Φ27mm)
With 25mm lens: 22.6mm×22.6mm×44.2mm (lens outer diameter Φ33mm)
With 35mm lens: 22.6mm×22.6mm×50.9mm (lens outer diameter Φ43.2mm)
Weight (including lens) 85.5±4.5g (With 5mm Lens)
70.5±3.6g (With 10mm Lens)
35.7±2g (With 12mm Lens)
40.7±2.1g (With 17mm Lens)
71.0±3.6g (With 25mm Lens)
110±5.5g (With 35mm Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 5/10/12/17/25/35mm
Industrial Applications

The iTL1208 thermal imaging module can be widely used in forest firefighting, power maintenance, photovoltaic inspection, security monitoring, wearable devices, portable devices, and more.

Our Team
  • Deep Technical Expertise - Many years of experience in infrared sensor technology research, development, and application with strong capabilities across chip design, wafer fabrication, packaging and testing, and system integration
  • Focused on Innovation and Practical Implementation - Committed to driving technological breakthroughs in thermal imaging, constantly pushing boundaries in NETD, SWaP, and operating temperature
  • Diversified Product Portfolio - Comprehensive range of infrared detection components including both cooled and uncooled solutions for various industries
  • Rigorous Reliability Validation - Robust quality management system with multiple testing procedures throughout production to ensure long-term stability and reliability
  • Professional Technical Support - Engineering team works closely with customers' R&D and product teams to accelerate system integration and improve efficiency
Frequently Asked Questions
What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device that reacts to infrared radiation and thermal energy and converts it into electrical signals, then outputs visible thermal images.

What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package and ceramic package, they are the 3 main package formats of uncooled infrared detectors.

What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirements in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications in emerging markets.
