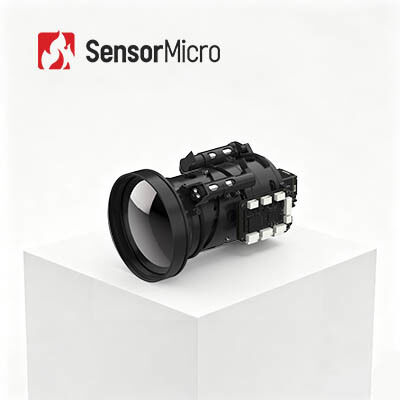

Uncooled Thermal Module with 640x512 Resolution LWIR Infrared Detector and 12μm Pixel Pitch for High Sensitivity Imaging
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 12μm | Typical NETD | ≤20mK |
|---|---|---|---|
| Camera Lens | Multiple Available | Frame Rate | 50Hz |
| Start-up Time | 6s | Spectral Range | 8~14μm LW |
| Highlight | PLUG617 Uncooled Thermal Module,640x512 Uncooled Thermal Module,30mK LWIR camera module |
||
Product Description
Uncooled Thermal Module with LWIR 640x512 / 12μm Infrared Detector
Product Overview
The iSE612 infrared camera core is built upon our independently developed high-performance ApexCore 640×512 12μm ceramic-packaging thermal detector, delivering outstanding performance and reliable operational stability.
With a noise equivalent temperature difference lower than 20mK, this core captures delicate thermal details with remarkable sensitivity. Unlike conventional shutter-type thermal imaging devices, it requires no shutter calibration during operation, eliminating image stuttering and noise interference common in traditional products.
Key Features
- Smooth, Stable Operation: No shutter calibration required, eliminating image stuttering
- High Cost-Effectiveness: ApexCore ceramic-packaging detector with NETD≤20mK
- Compact Design: Dimensions: 25.4×25.4×22.7mm, weight: ≤26±1.5g
- Space-Efficient: Flexible system layout and integration capabilities
- Rich Functionality: Super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration
- Broad Compatibility: Works with multiple Micro OLED displays, optical lenses, and extension components
Technical Specifications
| Model | iSE612 | |
|---|---|---|
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD |
≤20mK |
|
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Compensation Mode | Manual | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight | 26±1.5g | 28±1.5g |
| Optical Lens | Fixed Focus Athermal: 4.8/9.1/13/19mm |
|
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration |
5.35g, Random Vibration, 3-axis |
|
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE612 thermal imaging module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, and more.
Our Infrared Detector Line
- High sensitivity and excellent performance
- World-leading technology in infrared industry
- Various infrared detectors available in different formats and pixel sizes
- Both uncooled and cooled IR detectors
- Volume production with annual capacity up to millions of detectors
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low Light: Needs natural light and transforms weak natural light into enhanced electronic images through image intensifiers.
Active IR: Actively emits infrared light and uses infrared beams reflected by targets. Has very poor concealment.
Thermal Imaging: Doesn't need any light and is a passive infrared night vision that detects infrared radiation differences. Not affected by changes in lighting conditions, during night, or in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot. However, infrared rays cannot penetrate walls, and glass can block IR. To avoid detection, you can conceal behind glass or walls to block thermal imaging.
