Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging

I'm Online Chat Now

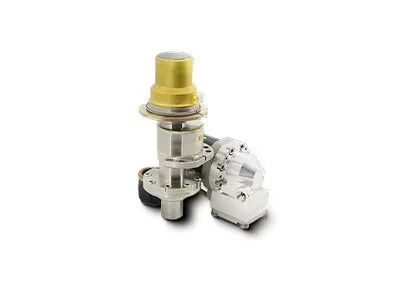

Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging

Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging
Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging

Large Image :  Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C330M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256/30μm NETD: ≤9mK (F2); ≤15mK (F4)
Spectral Range: 3.7~4.8μm MW Size: 142x58.5x71mm
Cryo Cooler: RS058/RS046H Weight: ≤600g
High Light:

Cooled MCT Infrared Detector 320x256

,

Cooled MCT Infrared Detector 30uM

,

Anti Blooming Cooled Infrared Detectors

Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging

About C330M Cooled Infrared Detector



F1.5 320x256 / 30μm MWIR MCT Cooled Infrared Detector for Gas Lead Detection



Product Description



C330M-B3T MWIR MCT cooled infrared detector is specially designed for Optical Gas Imaging detection applications. The customized spectral range is from 3.2~3.5μm which is just for the working range of Volatile organic compounds, or VOCs. The capture of F1.5 enables even clearer imaging details so as to “see” the invisible leaked gas for any further harm on the environment.



 Main Features



- Resolution: 320x256

- Pixel Pitch: 30μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption



Product Specifications



Model C330M MW
Material MCT
Resolution 320x256
Pixel Pitch 30μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Number of Output 1 or 4; Up to 6.6Mpixel/s per Output
NETD F2: ≤9mK
F4: ≤15mK
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058/RS046H
Steady Power Consumption ≤6W @ RS058
≤6W @ RS046H
Max Power Consumption ≤12W @ RS058
≤11W @ RS046H
Power Supply RS058: 24V DC
RS046H: 32V DC
Cooling Time ≤6min @ RS058
≤5min30s @ RS046H
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging 0



GST Infrared Solution


Cooled MCT Infrared Detector 320x256 / 30μM For Optical Gas Imaging 1


FAQs



1. What is thermal sensitivity?

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.



2. What are the applications of thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
