Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

I'm Online Chat Now

Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems
Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

Large Image :  Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C615S LWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 Pixel Pitch: 15μm
Stable Power Consumption: <8W High Sensitivity: NETD≤25mK
Spectral Range: 3.7~4.8μm (MW); 7.7~9.5 (LW) Size: 142x58.5x71mm
High Light:

15uM LWIR Infrared Detector

,

640x512 LWIR Infrared Detector

,

RoHS Integrated Cooled Infrared Detectors

Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems

C615S by GST Infrared

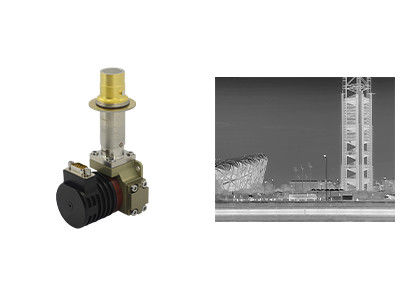

T2SL 640x512 / 15µm LWIR Cooled Infrared Detector with Integrated Dewar Cooler Assembly



Product Description



C615S LWIR integrated dewar cooler assembly is one of T2SL cooled infrared detectors developed by Global Sensor Technology (GST). It is a 640x512 / 15µm Type II Superlattice (T2SL), Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.



With 640x512 resolution and reduced pixel pitch to 15µm, the C615S LWIR integrated dewar cooler assembly provides clear image and superior performance. It features in most advanced technology, high quantum efficiency, high frame rate, high sensitivity, low noise, best non-uniformity etc.



As a LWIR detector, it presents high performance under the conditions of sand or dust climate and will not be affected by sunlight flicker or any high temperature flame.



Main Features



- Resolution: 640x512

- Pixel Pitch: 15µm

- High Sensitivity

- Good Imaging Effect

- Low Noise

- Stable Performance

- Excellent Non-uniformity



Product Specifications



Model C615S LWIR
Material T2SL
Resolution 640x512
Pixel Pitch 15um
Spectral Range 7.7μm~9.5μm LW
Working Mode Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming
Charge Capacity ITR: 12.22Me-/6.67Me-
Interlace Binning: 24.44Me-/13.33Me-
Dynamic Range ITR: ≥76dB
Interlace Binning: ≥77dB
Output Channel 4; Up to 22.5 Mpixel/s per Output
NETD ≤30mK(F2 ITR)
≤25mK(F2 Interlace Binning)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cooler Type RS058
Steady Power Consumption <8W
Max Power Consumption <17W
Power Supply 24V DC
Cooling Time <5min30s
Weight ≤600g
Dimension (mm) 148x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C615S LWIR cooled IR detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems 0


Honors & Certificates


Cooled 640x512 / 15μM LWIR Infrared Detector Integrated Into EO-IR Systems 1


FAQs



1. What is thermal sensitivity?

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.



2. What are the applications of thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in security & monitoring, UAV payloads, industrial inspection, firefighting, predictive maintenance, ADAS, epidemic prevention, AIoT etc.
