OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System

I'm Online Chat Now

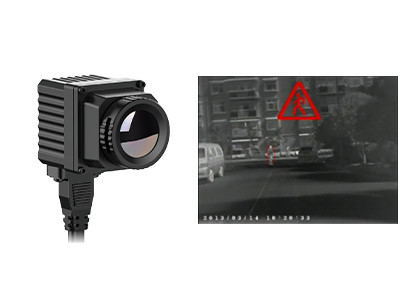

OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System

OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System
OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System

Large Image :  OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: N-driver 384S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288/17μm NETD: <50mK
Spectral Range: 8~14μm Field Of View: 37°x28°
Focal Length: 9.7mm
High Light:

OEM Vehicle Mounted Thermal Camera

,

9.7mm Vehicle Mounted Thermal Camera

Brief Introduction



384x288 / 17μm Vehicle Mounted Infrared Thermal Camera for Advanced Driver Assistance System



Product Description



N-Driver384S vehicle-mounted infrared modules is specially designed for the automotive market.  It carries the self-developed 384x288 /17μm VOx infrared detector Global Sensor Technology.



The automatic brightness contrast and image enhancement algorithm offered by N-Driver384S automotive thermal camera effectively improves driver‘s sight to clearly see the road condition. The product has the functions of all-night vision and anti-glare, which meets various driving needs at night, inclement weather and complex road conditions, escort driving safety of the drivers.



Main Features



- Not affected by light, harsh weather

- Improve visual range

- Escort the safety of drivers

- Easy to integrate and install

- Intelligent Alarm System



Product Specifications



Model

N-Driver 384S

IR Detector Performance

Resolution

384x288

Pixel Pitch

17μm

Spectral Range

8~14μm

NETD

<50mk

Image Display Performance

Focal Length

9.7mm

Field of View

37°×28°

Video Output Format

FPD-Link Ⅲ

Output Image Frame Rate & Resolution

DV 384x288@50Hz

System Features

Start-up Time

≤8s (Room Temperature)

Heater

When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off Heating by Itself

Compensation Algorithm

Automatic Shutter Compensation

Image Algorithm

Automatic Brightness Contrast/Image Enhancement

Communication Interface

RS232, Baud rate: 115200bps

Pedestrian / Vehicle Detection

Pedestrian & Vehicle Detection (With Algorithm Control Box)

Electrical Features

Supply Voltage

DC8V±0.5V

Overall Power Consumption

≤2W@8V Power Supply, Window Heating is off
≤5W@8V Power Supply, Window Heating is on

Operating Range

Observe Range

Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m

Detect Range

Person ≥80m
Car ≥100m

External Cable Connection

Cable Length

4m

Standard External Interface

Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head)

Physical Characteristics

Dimension (mm)

36.0x36.0x52.0 (Without Cable)

Weight

140g±3g (Without Cable)

Environmental Characteristics

Operation Temperature

-40°C~ +85°C

Storage Temperature

-45°C ~ +90°C

Environmental Test

Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013

Reliability Test

Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV

Package

Sealed Case IP67

Certification

EMC

/



Industrial Applications



The N-driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance System.



OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System 0



Our Team



OEM Vehicle Mounted Thermal Camera for Advanced Driver Assistance System 1



FAQs



1.What is infrared thermography?
Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3.What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
