Home ProductsHigh Resolution Thermal Camera Module

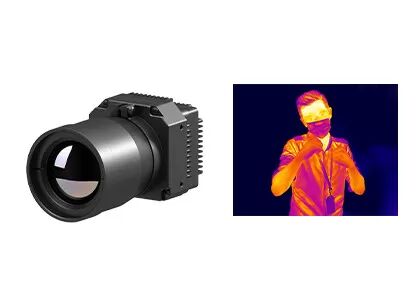

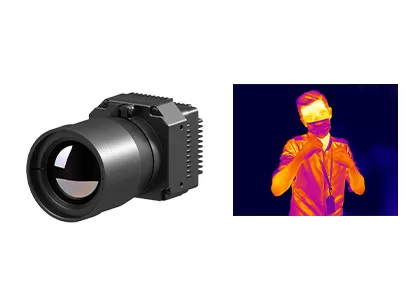

VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm

I'm Online Chat Now

VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm

VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm
VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm

Large Image :  VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG1212R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: <50mK
Spectral Range: 8~14μm Size: 20x20x10.4mm
High Light:

VOx High Resolution Thermal Camera Module

,

High Resolution Thermal Camera Module 1280x1024

PLUG1212 Infrared Camera Module



VOx Uncooled LWIR 1280x1024 / 12μm Thermal Camera Module for Industrial Temperature Measurement



Product Description



PLUG1212R is one of the PLUG-R series uncooled infrared camera module developed by Global Sensor Technology (GST). It adopts the market preferred focal plane array VOx microbolometer uncooled infrared detector, professional signal processing circuit and image processing platform, completely transforms the target infrared radiation into temperature data. Its temperature measurement is available and temperature range can be customizable raging from -20℃~150 ℃ for industrial temperature measurement.



With large array 1280x1024 resolution, the PLUG1212R uncooled thermal module could present more image details and supports larger field of view. The reduced 12µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission.



Main Features



- Pixel pitch: 12μm

- Resolution: 1280x1024

- Spectra Range: 8μm -14μm

- High Sensitivity: NETD<30mK

- Temperature Range: -20℃~150℃, 100℃~550℃

- Temperature Accuracy: ±2℃ or ±2%

- High reliability & Strong Environmental Adaptability.



Product Specifications



Model PLUG1212R
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤200g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLU1212R infrared imaging module is widely used in Power Electricity, Machine Vision, Building Inspection, Metallurgical Petrochemical etc.



VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm 0

Our Core Infrared Detectors



VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm 1



FAQs



1. How to choose proper infrared detector resolution?

It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.



2. How to select right pseudo color for thermal imaging?

- The gray white is more suitable for the target with small temperature difference

- The red and blue is more suitable for the scene where the problem points need to be found.

- The iron red is the standard color palette of the power industry.

Note: no matter which palette you choose, the thermal temperature will not change at all.



3.How to choose a suitable infrared thermal camera lens?

- Standard lens can meet normal targets with appropriate distance

- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance

- To see more detail of objects at close distance, wide angle lens is better.

- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
