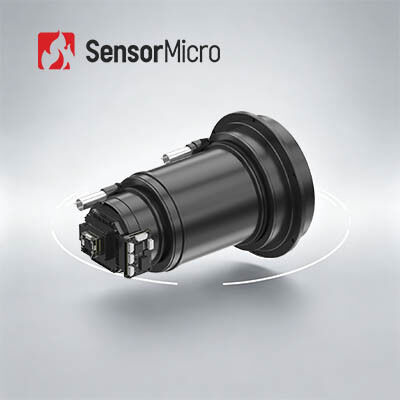

VOx High Resolution 1280x1024 Thermal Camera Module with 12μm Pixel Size and Uncooled LWIR Technology

  • VOx High Resolution 1280x1024 Thermal Camera Module with 12μm Pixel Size and Uncooled LWIR Technology
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number iSE1212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280x1024/12μm Typical NETD ≤30mK
Spectral Range 8~14μm Digital Frame Rate 25Hz/30Hz/50Hz
Digital Zoom 1x/2x/4x/8x Image Direction Horizontal/Vertical/Diagonal
Highlight

VOx High Resolution Thermal Camera Module

,

High Resolution Thermal Camera Module 1280x1024
Leave a Message
Product Description
VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μm
Product Overview

iSE1212 is one of the iSE series uncooled infrared camera modules. It adopts the market preferred focal plane array VOx microbolometer uncooled infrared detector, professional signal processing circuit and image processing platform, completely transforming target infrared radiation into temperature data.

With large array 1280x1024 resolution, the iSE1212 uncooled thermal module presents more image details and supports larger field of view. The reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission.

Main Features
  • High-Definition Imaging with Smooth Visuals - Delivers megapixel thermal imaging with smooth, lag-free performance. Wider field of view, larger angle coverage, longer detection range, and enhanced detail.
  • Shutterless Operation for Silent Performance - No shutter calibration required during use, eliminating image stuttering common in traditional designs. Silent operation helps avoid detection by targets.
  • Feature-Rich and Integration-Friendly - Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with a wide range of optical lenses and extended components, enabling easy secondary development and flexible system integration.
Product Specifications
Model iSE1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Effective Pixels 1280×1024
Digital Frame Rate 25Hz/30Hz/50Hz
Start-up Time 7s
Digital Video YUV420/YUV422/RGB888/RAW
Image Algorithm NUC/DRC/DNS/DDE/SFFC
Shutterless Supported
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Image Direction Horizontal/Vertical/Diagonal
Digital Zoom 1x/2x/4x/8x
Image Brightness Auto/Manual
Image Contrast Auto/Manual
Compensation Mode Manual
Reticle Supported
System Function
Sleep Mode Supported
Menu Setting Customizable
Menu Language Chinese / English
Offset calibration Supported
Keypads ≥4(Button functions customizable)
OLED Driving Support I2C, 16bit/ 24bit Parallel Port, datavalid and other drive screen signals
Direct Drive Micro OLED MDP03/Micro OLED MDP02/OLiGHTEK SVGA060/Sony ECX334A
Supports MIPI display signals and can directly drive the IBOE VX039FHP-NH4 screen.
PC Software
Computer Software Module Control & Video Display
Electrical
Standard External Interface 50pin: BP040SB-50-0114-B-R0
Communication Interface TTL-232/USB
Digital Video Interface DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE
Extension Components USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
Electrical Interface
Supply Voltage 2.7V~5.3V
Typical Power Consumption 1.2W@25Hz@23±3℃
Mechanical/Lens
Bare Core Size(mm) 38×39×28 68×69×30.2
Bare Core Weight(g) 65±3 88.5±3
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm Fixed Focus Athermal: 50mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Zoom: 15~100mm / 25~75mm / 28~90mm / 30~180mm / 25~225mm / 30~300mm
Shutter Components Optional
Protection Level IP67(Front Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35g, Random Vibration,, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times 500g@1ms
Certification ROHS2.0/REACH
Industrial Applications

The iSE1212 infrared imaging module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics, etc.

About SensorMicro

SensorMicro is dedicated to delivering comprehensive and professional services that underpin our customers' success throughout the entire project lifecycle. Our service system is built on the core values of reliability, responsiveness, and customization, ensuring that every customer receives tailored support that aligns with their unique business needs.

Frequently Asked Questions
How to choose proper infrared detector resolution?

It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.

How to select right pseudo color for thermal imaging?

- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.

How to choose a suitable infrared thermal camera lens?

- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it's suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tiny target with close distance, such as chip circuit.
