Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving

I'm Online Chat Now

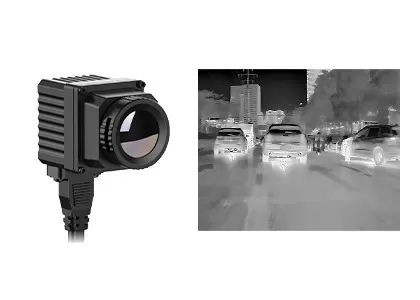

Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving

Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving
Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving

Large Image :  Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: N-driver 384S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288/17μm NETD: <50mK
Spectral Range: 8~14μm Field Of View: 37°x28°
High Light:

Camera Infrared Night Vision 384x288

,

RoHS Camera Infrared Night Vision

Brief Introduction



384x288 / 17μm Vehicle Mounted Infrared Thermal Camera for Advanced Driver Assistance System



Product Description



N-Driver384S vehicle-mounted infrared modules is specially designed for the automotive market.  It carries the self-developed 384x288 /17μm VOx infrared detector Global Sensor Technology.



The automatic brightness contrast and image enhancement algorithm offered by N-Driver384S automotive thermal camera effectively improves driver‘s sight to clearly see the road condition. The product has the functions of all-night vision and anti-glare, which meets various driving needs at night, inclement weather and complex road conditions, escort driving safety of the drivers.



Global Sensor Technology is a leading cooled & uncooled sensor and thermal camera module manufacturer which could provide customers with various steady thermal imaging solutions. Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for our thermal sensors developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Not affected by light, harsh weather

- Improve visual range

- Escort the safety of drivers

- Easy to integrate and install

- Intelligent Alarm System



Product Specifications



Model

N-Driver 384S

IR Detector Performance

Resolution

384x288

Pixel Pitch

17μm

Spectral Range

8~14μm

NETD

<50mk

Image Display Performance

Focal Length

9.7mm

Field of View

37°×28°

Video Output Format

FPD-Link Ⅲ

Output Image Frame Rate & Resolution

DV 384x288@50Hz

System Features

Start-up Time

≤8s (Room Temperature)

Heater

When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off Heating by Itself

Compensation Algorithm

Automatic Shutter Compensation

Image Algorithm

Automatic Brightness Contrast/Image Enhancement

Communication Interface

RS232, Baud rate: 115200bps

Pedestrian / Vehicle Detection

Pedestrian & Vehicle Detection (With Algorithm Control Box)

Electrical Features

Supply Voltage

DC8V±0.5V

Overall Power Consumption

≤2W@8V Power Supply, Window Heating is off
≤5W@8V Power Supply, Window Heating is on

Operating Range

Observe Range

Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m

Detect Range

Person ≥80m
Car ≥100m

External Cable Connection

Cable Length

4m

Standard External Interface

Power Supply+Video+Serial Port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head)

Physical Characteristics

Dimension (mm)

36.0x36.0x52.0 (Without Cable)

Weight

140g±3g (Without Cable)

Environmental Characteristics

Operation Temperature

-40°C~ +85°C

Storage Temperature

-45°C ~ +90°C

Environmental Test

Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013

Reliability Test

Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV

Package

Sealed Case IP67

Certification

EMC

/



Industrial Applications



The N-driver 384S automotive thermal imaging camera is widely used in Advanced Driver Assistance System.



Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving 0



Praises from Customers



Intelligent Alarm Vehicle Mounted Thermal Camera for Safe Driving 1



FAQs



1.How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
