N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving

I'm Online Chat Now

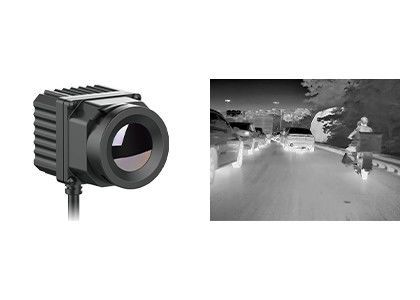

N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving

N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving
N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving

Large Image :  N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: N-driver 384
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 384x288/17μm NETD: <50mK
Spectral Range: 8~14μm Field Of View: 37°x28°
High Light:

384x288 Night Vision Infrared Camera

,

50mK Night Vision Infrared Camera

Brief Introduction


384x288 / 17μm N-Driver384 Vehicle Mounted Night Vision Infrared Camera for Safe Driving



Product Description



N-Driver384 vehicle-mounted infrared module is specially oriented for drivers' safe driving in harsh environment such as total darkness, rain, snow, fog, dust etc. It carries the uncooled LWIR infrared detector with a resolution of 384x288 and a pixel size at 17μm.



Drivers can see clear thermal image 300 meters away beyond the reach of vehicles' headlights and will not worry about the interference of high beams from oncoming vehicles by installing this infrared camera module.



The N-Driver384 infrared camera module has a broad application prospect in the fields of automatic driving, vehicle assisted driving (ADAS) and special vehicle applications.



Main Features



- Resolution: 384x288

- Pixel Pitch: 17μm

- NETD<50mk

- A Great Distance of View

- All-weather Application

- High Speed Data Transmission

- High Reliability & Stability



Product Specifications



Model N-Driver 384
IR Detector Performance
Resolution 384x288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <50mk
Image Display Performance
Focal Length 9.7mm
Field of View 37°×28°
Video Output Format CVBS
Output Image Frame Rate & Resolution PAL 768x576@25Hz
System Features
Start-up Time ≤8s (Room Temperature)
Heater When the Window Temperature is Lower than 2°C±2°C, Start Heating by Itself
When the Window Temperature is Higher than 7°C±2°C, Turn off the Heating by Itself
Compensation Algorithm Automatic Shutter Compensation
Image Algorithm Automatic Brightness Contrast/Image Enhancement
Communication Interface RS232, Baud Rate: 115200bps/CAN Communication, Speed 500kbps
Pedestrian/Vehicle Detection /
Electrical Features
Supply Voltage DC9V~32V
Overall Power Consumption ≤3.5W@24V Power Supply, Window Heating is off
≤9W@24V Power Supply, Window Heating is on
Operating Range
Observe Range Person: 1.8m×0.5m ≥150m
Car: 2.3m×2.3m ≥300m
Detect Range /
External Cable Connection
Cable Length 4m
Standard External Interface Power Supply: DC5.5*2.1 Female Connector
Video: RCA Lotus Male Connector
Serial Port: SM 2.54-3P Male Connector (Pin)
Physical Characteristics
Dimension (mm) 40.0x36.0x58.0 (Without Cable)
Weight 150g±3g (Without Cable)
Environmental Adaptation
Operation Temperature -40°C ~ +85°C
Storage Temperature -45°C ~ +90°C
Environmental Test Salt Spray: ISO16750-4; Harsh Level IV
Industrial Solvent: GB/T28046.5-2013
Reliability Test Vibration: ISO16750-3, Grade A
Flame Retardant: GB8410, Grade B
Stone Impact: ISO16750-3, Grade A
ESD: Contact Discharge ±8KV, Air Discharge ±15KV
Package Sealed Case IP67
Certification
EMC EMC Test Certification (ISO10605, ISO11452-4, ISO11452-2, ISO7637-2)



Industrial Applications



The N-driver 384 automotive thermal imaging camera is widely used in Advanced Driver Assistance System.



N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving 0



About GST Infrared



N-Driver384 Night Vision Infrared Camera Module 384x288 for Safe Driving 1



FAQs



1. What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
